这篇文章我们讲解的是Flume监控之Ganglia的安装与部署。

---

1. Ganglia的安装与部署

• 1. 安装httpd服务与php

[bigdata@hadoop002 flume]$ sudo yum -y install httpd php





• 1

• 2. 安装其他依赖

[bigdata@hadoop002 flume]$ sudo yum -y install rrdtool perl-rrdtool rrdtool-devel
[bigdata@hadoop002 flume]$ sudo yum -y install apr-devel





• 1
• 2

• 3. 安装ganglia

[atguigu@hadoop102 flume]$ sudo rpm -Uvh http://dl.fedoraproject.org/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm
[bigdata@hadoop002 flume]$ sudo yum -y install ganglia-gmetad
[bigdata@hadoop002 flume]$ sudo yum -y install ganglia-web
[bigdata@hadoop002 flume]$ sudo yum install -y ganglia-gmond   // 如果这三个不能下载安装的话修改epel源即可






• 1
• 2
• 3
• 4
• 5

  Ganglia由gmond、gmetad和gweb三部分组成。
  gmond（Ganglia Monitoring Daemon）是一种轻量级服务，安装在每台需要收集指标数据的节点主机上。使用gmond，你可以很容易收集很多系统指标数据，如CPU、内存、磁盘、网络和活跃进程的数据等。
  gmetad（Ganglia Meta Daemon）整合所有信息，并将其以RRD格式存储至磁盘的服务。
  gweb（Ganglia Web）Ganglia可视化工具，gweb是一种利用浏览器显示gmetad所存储数据的PHP前端。在Web界面中以图表方式展现集群的运行状态下收集的多种不同指标数据。

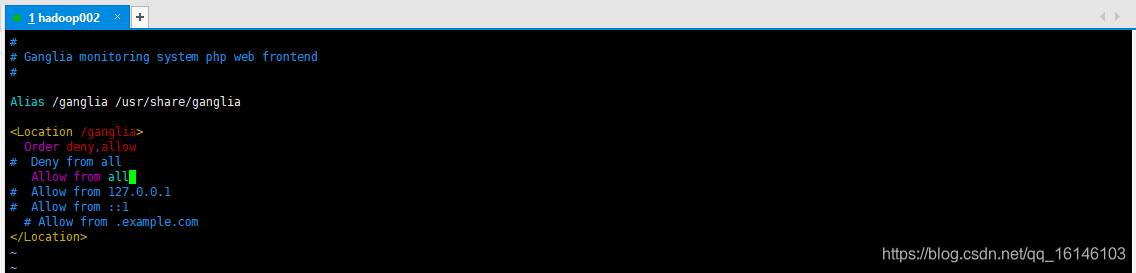

• 4. 修改配置文件/etc/httpd/conf.d/ganglia.conf

[bigdata@hadoop002 flume]$ sudo vim /etc/httpd/conf.d/ganglia.conf

// 修改成如下的内容
# Ganglia monitoring system php web frontend
Alias /ganglia /usr/share/ganglia
<Location /ganglia>
  Order deny,allow
  #Deny from all
  Allow from all
  # Allow from 127.0.0.1
  # Allow from ::1
  # Allow from .example.com
</Location>






• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14

• 5. 修改配置文件/etc/ganglia/gmetad.conf

[bigdata@hadoop002 flume]$ sudo vim /etc/ganglia/gmetad.conf
// 仅修改此处
data_source "hadoop102" 192.168.1.102





• 1
• 2
• 3

• 6. 修改配置文件/etc/ganglia/gmond.conf

[bigdata@hadoop002 flume]$ sudo vim /etc/ganglia/gmond.conf

// 以下为要修改部分
cluster {
  name = "hadoop002"
  owner = "unspecified"
  latlong = "unspecified"
  url = "unspecified"
}
udp_send_channel {
  #bind_hostname = yes # Highly recommended, soon to be default. # This option tells gmond to use a source address # that resolves to the machine's hostname.  Without # this, the metrics may appear to come from any # interface and the DNS names associated with # those IPs will be used to create the RRDs.
  # mcast_join = 239.2.11.71
  host = 192.168.2.112
  port = 8649
  ttl = 1
}
udp_recv_channel {
  # mcast_join = 239.2.11.71
  port = 8649
  bind = 192.168.2.112
  retry_bind = true
  # Size of the UDP buffer. If you are handling lots of metrics you really
  # should bump it up to e.g. 10MB or even higher.
  # buffer = 10485760
}






• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31

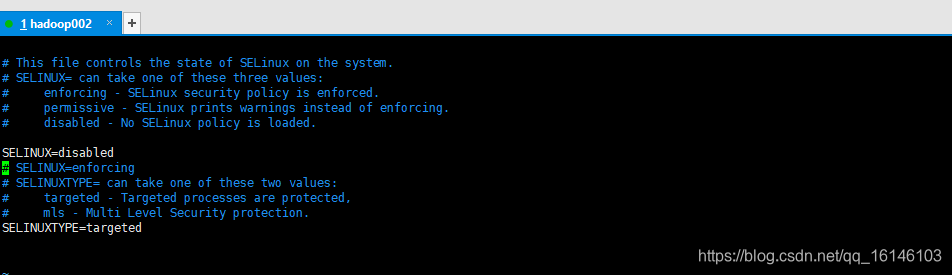

• 7. 修改配置文件/etc/selinux/config

[bigdata@hadoop002 flume]$ sudo vim /etc/selinux/config






• 1
• 2

• 8. 启动ganglia

[bigdata@hadoop002 flume]$ sudo service httpd start
[bigdata@hadoop002 flume]$ sudo service gmetad start
[bigdata@hadoop002 flume]$ sudo service gmond start






• 1
• 2
• 3
• 4

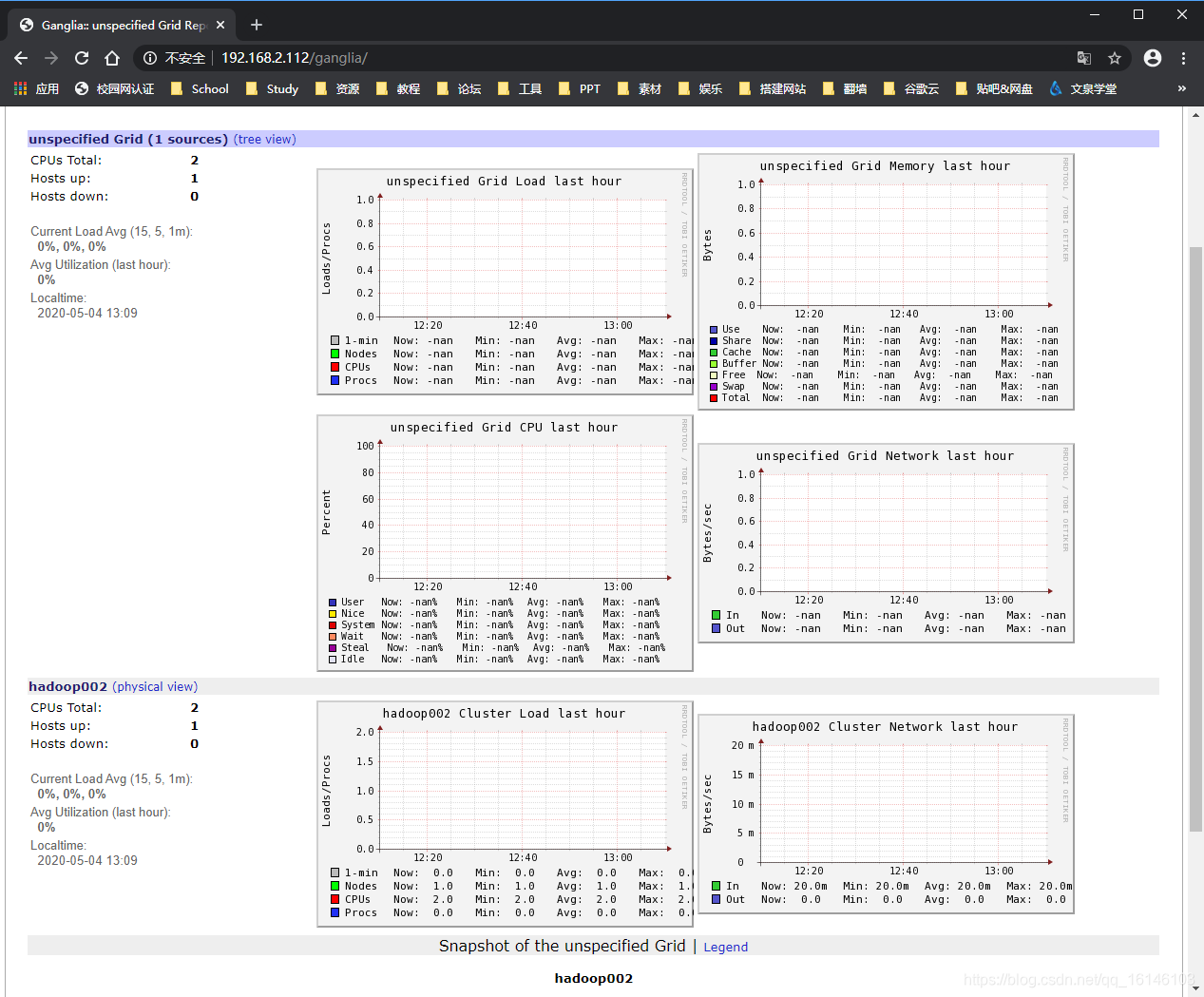

• 9. 打开网页浏览ganglia页面

http://192.168.2.112/ganglia

提示：如果完成以上操作依然出现权限不足错误，请修改/var/lib/ganglia目录的权限：

[bigdata@hadoop002 flume]$ sudo chmod -R 777 /var/lib/ganglia





• 1

2. 操作Flume测试监控

• 1. 修改/opt/module/flume/conf目录下的flume-env.sh配置

JAVA_OPTS="-Dflume.monitoring.type=ganglia
-Dflume.monitoring.hosts=192.168.2.112:8649
-Xms100m
-Xmx200m"






• 1
• 2
• 3
• 4
• 5

• 2. 启动Flume任务

[bigdata@hadoop002 flume]$ bin/flume-ng agent -c conf/ -n a1 -f job/flume-netcat-logger.conf -Dflume.root.logger=INFO,console






• 1
• 2

• 3. 发送数据观察ganglia监测图

[bigdata@hadoop002 flume]$ nc localhost 44444





• 1

图例说明：
