我们以一个例子demo的形式，说明Mybatis的一对一关联查询

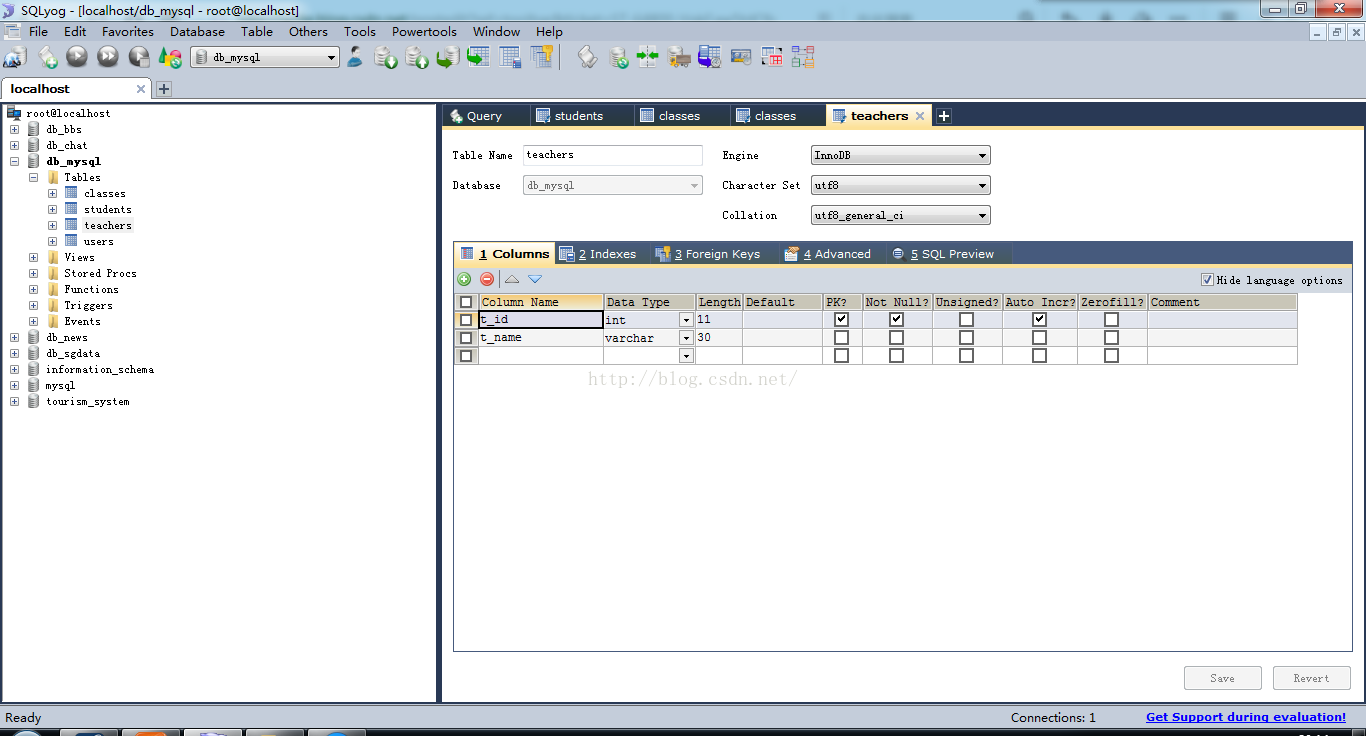

设计teachers表

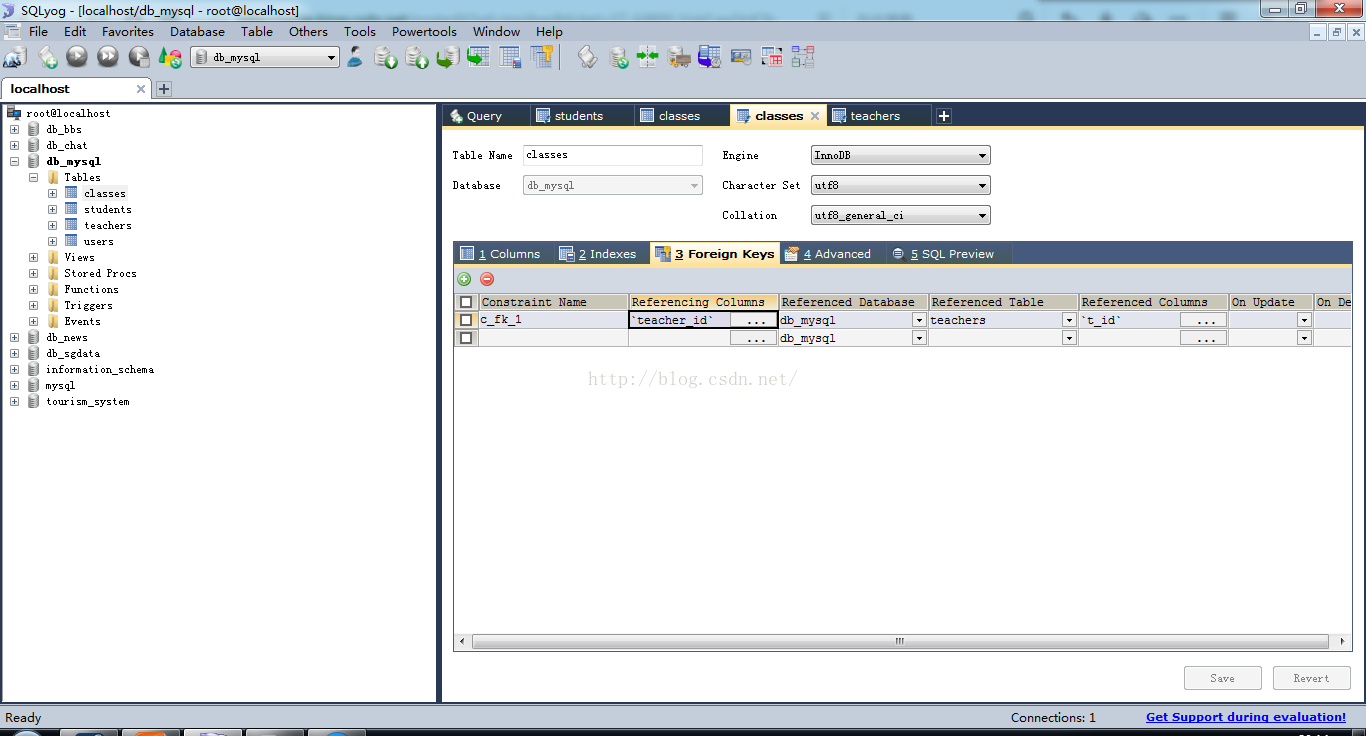

classes表设置外键

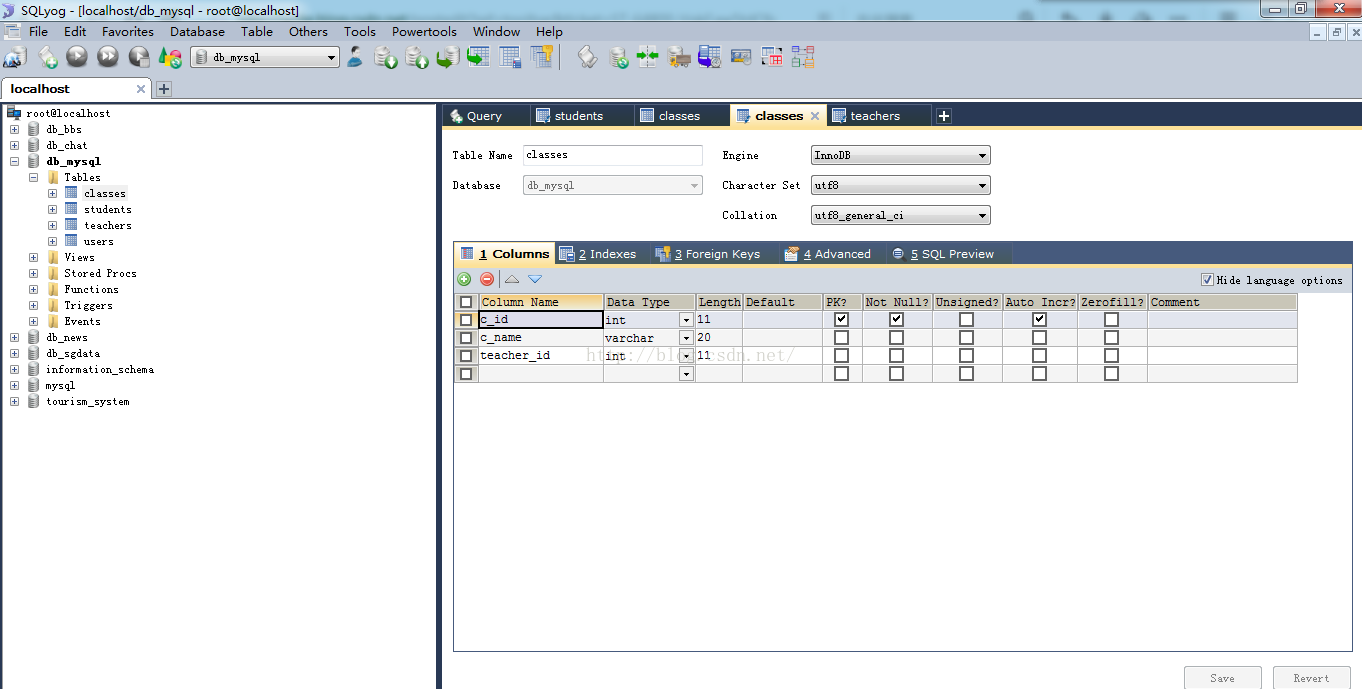

classes表
classes表是课程表，teachers表是教师信息表
这里是一对一的关联关系，当然实际中一般不是这样的，一般可以是多对多，不过这里只是举例子

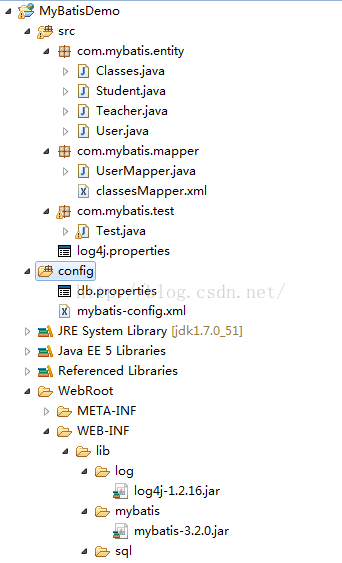

项目的结构，如图：
Classes.java:
-
package com.mybatis.entity;
-
-
import java.util.List;
-
-
public class Classes {
-
-
private int id;
-
-
private String name;
-
-
private Teacher teacher;
-
-
private List<Student> students;
-
-
public List<Student> getStudents() {
-
return students;
-
}
-
-
public void setStudents(List<Student> students) {
-
this.students = students;
-
}
-
-
public int getId() {
-
return id;
-
}
-
-
public void setId(int id) {
-
this.id = id;
-
}
-
-
public String getName() {
-
return name;
-
}
-
-
public void setName(String name) {
-
this.name = name;
-
}
-
-
public Teacher getTeacher() {
-
return teacher;
-
}
-
-
public void setTeacher(Teacher teacher) {
-
this.teacher = teacher;
-
}
-
-
@Override
-
public String toString() {
-
return "Classes [id=" + id + ", name=" + name + "]";
-
}
-
-
}
Teacher.java:
-
package com.mybatis.entity;
-
-
public class Teacher {
-
-
private int id;
-
-
private String name;
-
-
public int getId() {
-
return id;
-
}
-
-
public void setId(int id) {
-
this.id = id;
-
}
-
-
public String getName() {
-
return name;
-
}
-
-
public void setName(String name) {
-
this.name = name;
-
}
-
-
-
}
这里以两种方式进行使用
classesMapper.xml:
-
<?xml version="1.0" encoding="UTF-8" ?>
-
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
-
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
-
<!--
-
为这个mapper指定一个唯一的namespace，namespace的值习惯上设置成包名+sql映射文件名，这样就能够保证namespace的值是唯一的
-
-->
-
<mapper namespace="com.mybatis.mapper.classesMapper">
-
-
<!--
-
在select标签中编写查询的SQL语句， 设置select标签的id属性为findById，id属性值必须是唯一的，不能够重复
-
parameterType可以在MyBatis的配置文件里设置，也可以直接用包名+类名
-
-->
-
-
<select id="findById" parameterType="int" resultMap="ClassesResultMap">
-
select * from classes c,teachers t where c.teacher_id=t.t_id and c.c_id=#{id}
-
</select>
-
<resultMap type="Classes" id="ClassesResultMap">
-
<id property="id" column="c_id" />
-
<result property="name" column="c_name" />
-
<association property="teacher" column="teacher_id" javaType="Teacher">
-
<id property="id" column="t_id" />
-
<result property="name" column="t_name" />
-
</association>
-
</resultMap>
-
-
<select id="findById2" parameterType="int" resultMap="ClassesResultMap2">
-
select * from classes where c_id=#{id}
-
</select>
-
<resultMap type="Classes" id="ClassesResultMap2">
-
<id property="id" column="c_id" />
-
<result property="name" column="c_name" />
-
<association property="teacher" column="teacher_id" javaType="Teacher" select="getTeacherInfo">
-
</association>
-
</resultMap>
-
<select id="getTeacherInfo" parameterType="int" resultType="Teacher">
-
select t_id,t_name from teachers where t_id=#{id}
-
</select>
-
</mapper>
然后对mybatis进行配置：
-
<?xml version="1.0" encoding="UTF-8"?>
-
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
-
"http://mybatis.org/dtd/mybatis-3-config.dtd">
-
<configuration>
-
-
<!-- 数据库配置文件 -->
-
<properties resource="db.properties" />
-
-
<!-- 实体类,简称 -设置别名 -->
-
<typeAliases>
-
<typeAlias alias="User" type="com.mybatis.entity.User" />
-
<typeAlias alias="Classes" type="com.mybatis.entity.Classes" />
-
<typeAlias alias="Student" type="com.mybatis.entity.Student" />
-
<typeAlias alias="Teacher" type="com.mybatis.entity.Teacher" />
-
</typeAliases>
-
-
-
<!-- 读取db.properties里的数据，进行数据库配置 -->
-
<environments default="development">
-
<environment id="development">
-
<transactionManager type="JDBC" />
-
<dataSource type="POOLED">
-
<property name="driver" value="${driver}"/>
-
<property name="url" value="${url}" />
-
<property name="username" value="${username}"/>
-
<property name="password" value="${password}"/>
-
</dataSource>
-
</environment>
-
</environments>
-
-
<!--
-
注册userMapper.xml文件
-
<mappers>
-
<mapper resource="com/mybatis/mapper/userMapper.xml"/>
-
</mappers>
-
-->
-
-
<mappers>
-
<mapper class="com.mybatis.mapper.UserMapper"/>
-
<mapper resource="com/mybatis/mapper/classesMapper.xml"/>
-
</mappers>
-
-
</configuration>
db,properties:
-
driver=com.mysql.jdbc.Driver
-
url=jdbc\:mysql\://localhost\:3306/db_mysql?useUnicode\=true&characterEncoding\=utf-8
-
username=root
-
password=111
编写测试类：
-
String resource = "mybatis-config.xml";
-
try{
-
//加载Mybatis的配置文件
-
Reader reader = Resources.getResourceAsReader(resource);
-
//构建sqlSession的工厂
-
SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(reader);
-
//创建可以执行sql的SqlSession
-
SqlSession session = sessionFactory.openSession();
-
UserMapper mapper = session.getMapper(UserMapper.class);
-
User user = mapper.findById(1);
-
System.out.println(user);
-
-
Classes c = session.selectOne("com.mybatis.mapper.classesMapper.findById1",1);
-
System.out.println(c);
-
-
-
}catch (Exception e) {
-
e.printStackTrace();
-
}
