前言

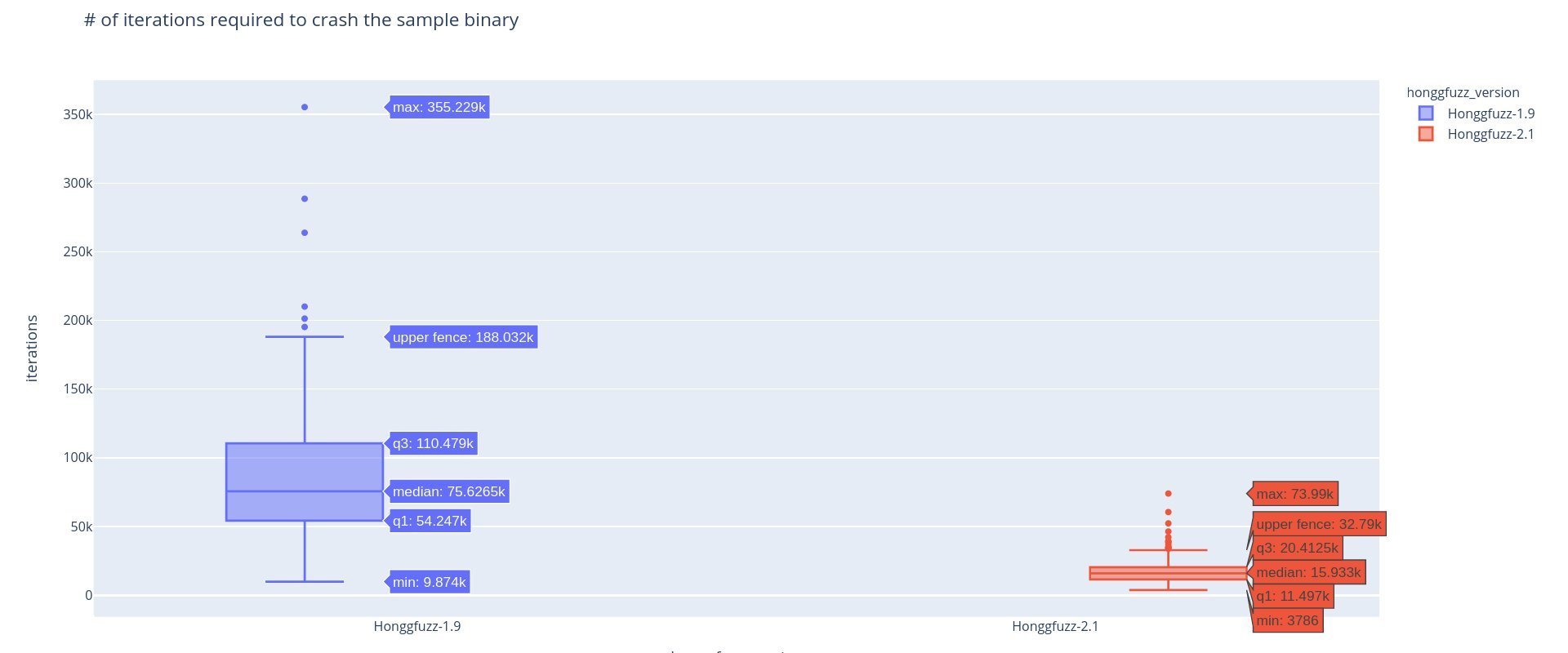

honggfuzz在4月21日fuzzbench的性能测试[1]中一骑绝尘，战胜老对手AFL、libfuzzer摘得桂冠。前段时间，google Project Zero 安全研究员也是通过对honggfuzz进行二次开发成功发现苹果闭源图片处理库的多个漏洞[2]。honggfuzz的2.X版本中引入的 const_feedback （使用被 fuzz 程序中的常量整数/字符串值通过动态字典处理输入文件）显著减少运行过程中指令迭代次数[3]，提高了漏洞挖掘效率。
honggfuzz以前也有很多前辈对其进行过分析[5] [6]，但大多数还是2.X版本之前的，本篇文章重点介绍新版本中const_feedback和新变异策略的相关实现。
本次使用的honggfuzz版本为2.2（74e7bc161662269b6ff4cdb3e2fdd2ad0bebd69b）。此版本已经默认打开const_feedback功能。
trace-cmp
使用 hfuzz-clang 编译目标文件代码时，-fsanitize-coverage = trace-pc-guard，indirect-calls，trace-cmp 标志集将自动添加到 clang 的命令行中。新版本中引入了与 trace-cmp 相关的新变异策略，本次重点对其介绍。其余参数之前有文章分析过不再赘述[6]
包含此标志时，编译器在比较指令和switch指令之前插入如下代码：
/* Standard __sanitizer_cov_trace_cmp wrappers */
void __sanitizer_cov_trace_cmp1(uint8_t Arg1, uint8_t Arg2)
void __sanitizer_cov_trace_cmp2(uint16_t Arg1, uint16_t Arg2)
void __sanitizer_cov_trace_cmp4(uint32_t Arg1, uint32_t Arg2)
void __sanitizer_cov_trace_cmp8(uint64_t Arg1, uint64_t Arg2)
/* Standard __sanitizer_cov_trace_const_cmp wrappers */
void __sanitizer_cov_trace_const_cmp1(uint8_t Arg1, uint8_t Arg2)
void __sanitizer_cov_trace_const_cmp2(uint16_t Arg1, uint16_t Arg2)
void __sanitizer_cov_trace_const_cmp4(uint32_t Arg1, uint32_t Arg2)
void __sanitizer_cov_trace_const_cmp8(uint64_t Arg1, uint64_t Arg2)
之后会调用instrumentAddConstMem()或 instrumentAddConstMemInternal()函数将比较的常量值存入globalCmpFeedback中：
static inline void instrumentAddConstMemInternal(const void* mem, size_t len) {
if (len == 0) {
return;
}
if (len > sizeof(globalCmpFeedback->valArr[0].val)) {
len = sizeof(globalCmpFeedback->valArr[0].val);
}
uint32_t curroff = ATOMIC_GET(globalCmpFeedback->cnt);
if (curroff >= ARRAYSIZE(globalCmpFeedback->valArr)) {
return;
}
for (uint32_t i = 0; i < curroff; i++) {//若该常量已存在在列表中，跳过
if ((len == ATOMIC_GET(globalCmpFeedback->valArr[i].len)) &&
libc_memcmp(globalCmpFeedback->valArr[i].val, mem, len) == 0) {
return;
}
}
uint32_t newoff = ATOMIC_POST_INC(globalCmpFeedback->cnt);
if (newoff >= ARRAYSIZE(globalCmpFeedback->valArr)) {
ATOMIC_SET(globalCmpFeedback->cnt, ARRAYSIZE(globalCmpFeedback->valArr));
return;
}
memcpy(globalCmpFeedback->valArr[newoff].val, mem, len);
ATOMIC_SET(globalCmpFeedback->valArr[newoff].len, len);
wmb();
}
globalCmpFeedback结构体定义如下：
typedef struct {
uint32_t cnt;//存储常量值个数
struct {
uint8_t val[32];//常量值
uint32_t len; //常量值长度
} valArr[1024 * 16];
} cmpfeedback_t;
最后调用 hfuzz_trace_cmpx_internal若输入与待验证比较后相同的位数增加则更新 bitmap。
HF_REQUIRE_SSE42_POPCNT static inline void hfuzz_trace_cmp1_internal(
uintptr_t pc, uint8_t Arg1, uint8_t Arg2) {
uintptr_t pos = pc % _HF_PERF_BITMAP_SIZE_16M;
register uint8_t v = ((sizeof(Arg1) * 8) - __builtin_popcount(Arg1 ^ Arg2));
uint8_t prev = ATOMIC_GET(globalCovFeedback->bbMapCmp[pos]);
if (prev < v) {
ATOMIC_SET(globalCovFeedback->bbMapCmp[pos], v);
ATOMIC_POST_ADD(globalCovFeedback->pidNewCmp[my_thread_no], v - prev);
wmb();
}
}
变异策略
整体来讲，除了个别新策略如mangle_ConstFeedbackDict、mangle_StaticDict外，还对一些原有策略进行划分，封装。
fuzz策略的实现主要集中在mangle.c中，在循环的fuzzloop函数中，会根据用户的选择的 fuzz 方式来调用 input_prepareDynamicInput 或者input_prepareStaticFile，但最后都是调用mangle_mangleContent来变异文件数据。
mangle_mangleContent函数部分实现如下：
//mangle.c#L840
if (run->mutationsPerRun == 0U) {//设置变异率为0，仅作打开处理，通常用于验证崩溃
return;
}
if (run->dynfile->size == 0U) { //对空文件赋予随机size
mangle_Resize(run, /* printable= */ run->global->cfg.only_printable);
}
uint64_t changesCnt = run->global->mutate.mutationsPerRun;
//根据speed_factor大小设置changesCnt值，该值为之后变异的轮数
if (speed_factor < 5) {
changesCnt = util_rndGet(1, run->global->mutate.mutationsPerRun);
} else if (speed_factor < 10) {
changesCnt = run->global->mutate.mutationsPerRun;
} else {
changesCnt = HF_MIN(speed_factor, 12);
changesCnt = HF_MAX(changesCnt, run->global->mutate.mutationsPerRun);
}
//如果最后一次获取覆盖率时间超过5秒，则提高拼接变异的使用概率
if ((time(NULL) - ATOMIC_GET(run->global->timing.lastCovUpdate)) > 5) {
if (util_rnd64() % 2) {
mangle_Splice(run, run->global->cfg.only_printable);
}
}
//随机选择变异函数对输入文件内容进行变异
for (uint64_t x = 0; x < changesCnt; x++) {
uint64_t choice = util_rndGet(0, ARRAYSIZE(mangleFuncs) - 1);
mangleFuncs[choice](run, /* printable= */ run->global->cfg.only_printable);
}
变异函数列表如下：
这里添加多个 mangle_Shrink 的原因是为了减少其他操作中插入或扩展文件带来的文件大小增大。
//mangle.c#L812
static void (*const mangleFuncs[])(run_t * run, bool printable) = {
/* Every *Insert or Expand expands file, so add more Shrink's */
mangle_Shrink,
mangle_Shrink,
mangle_Shrink,
mangle_Shrink,
mangle_Expand,
mangle_Bit,
mangle_IncByte,
mangle_DecByte,
mangle_NegByte,
mangle_AddSub,
mangle_MemSet,
mangle_MemSwap,
mangle_MemCopy,
mangle_Bytes,
mangle_ASCIINum,
mangle_ASCIINumChange,
mangle_ByteRepeatOverwrite,
mangle_ByteRepeatInsert,
mangle_Magic,
mangle_StaticDict,
mangle_ConstFeedbackDict,
mangle_RandomOverwrite,
mangle_RandomInsert,
mangle_Splice,
};
mangle_Shrink
删除随机长度的文件内容。
static void mangle_Shrink(run_t* run, bool printable HF_ATTR_UNUSED) {
if (run->dynfile->size <= 2U) {
return;
}
size_t off_start = mangle_getOffSet(run);
size_t len = mangle_LenLeft(run, off_start);
if (len == 0) {
return;
}
if (util_rnd64() % 16) {
len = mangle_getLen(HF_MIN(16, len));
} else {
len = mangle_getLen(len);
}
size_t off_end = off_start + len;
size_t len_to_move = run->dynfile->size - off_end;
mangle_Move(run, off_end, off_start, len_to_move);
input_setSize(run, run->dynfile->size - len);
}
mangle_Expand
文件末尾扩展随机长度的空间，用空格填充，然后在随机位置，取前面的随机长度作数据拷贝。
static void mangle_Expand(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t len;
if (util_rnd64() % 16) {
len = mangle_getLen(HF_MIN(16, run->global->mutate.maxInputSz - off));
} else {
len = mangle_getLen(run->global->mutate.maxInputSz - off);
}
mangle_Inflate(run, off, len, printable);
}
static inline size_t mangle_Inflate(run_t* run, size_t off, size_t len, bool printable) {
if (run->dynfile->size >= run->global->mutate.maxInputSz) {
return 0;
}
if (len > (run->global->mutate.maxInputSz - run->dynfile->size)) {
len = run->global->mutate.maxInputSz - run->dynfile->size;
}
input_setSize(run, run->dynfile->size + len);
mangle_Move(run, off, off + len, run->dynfile->size);
if (printable) {
memset(&run->dynfile->data[off], ' ', len);
}
return len;
}
mangle_Bit
取随机位置的数值做位翻转。
static void mangle_Bit(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
run->dynfile->data[off] ^= (uint8_t)(1U << util_rndGet(0, 7));
if (printable) {
util_turnToPrintable(&(run->dynfile->data[off]), 1);
}
}
mangle_IncByte/DecByte/NegByte
随机位置的数据加1/减1/取反。
static void mangle_IncByte(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
if (printable) {
run->dynfile->data[off] = (run->dynfile->data[off] - 32 + 1) % 95 + 32;
} else {
run->dynfile->data[off] += (uint8_t)1UL;
}
}
static void mangle_DecByte(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
if (printable) {
run->dynfile->data[off] = (run->dynfile->data[off] - 32 + 94) % 95 + 32;
} else {
run->dynfile->data[off] -= (uint8_t)1UL;
}
}
static void mangle_NegByte(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
if (printable) {
run->dynfile->data[off] = 94 - (run->dynfile->data[off] - 32) + 32;
} else {
run->dynfile->data[off] = ~(run->dynfile->data[off]);
}
}
mangle_AddSub
取随机位置的1、2、4或8字节的数据长度作加减操作，新版本中对操作数范围进行划分，缩小了选择的范围。
static void mangle_AddSub(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
/* 1,2,4,8 */
size_t varLen = 1U << util_rndGet(0, 3);
if ((run->dynfile->size - off) < varLen) {
varLen = 1;
}
uint64_t range;
switch (varLen) {
case 1:
range = 16;//1<<4
break;
case 2:
range = 4096;//1<<12
break;
case 4:
range = 1048576;//1<<20
break;
case 8:
range = 268435456;//1<<28
break;
default:
LOG_F("Invalid operand size: %zu", varLen);
}
mangle_AddSubWithRange(run, off, varLen, range, printable);
}
static inline void mangle_AddSubWithRange(
run_t* run, size_t off, size_t varLen, uint64_t range, bool printable) {
int64_t delta = (int64_t)util_rndGet(0, range * 2) - (int64_t)range;
switch (varLen) {
case 1: {
run->dynfile->data[off] += delta;
break;
}
case 2: {
int16_t val;
memcpy(&val, &run->dynfile->data[off], sizeof(val));
if (util_rnd64() & 0x1) {
val += delta;
} else {
/* Foreign endianess */
val = __builtin_bswap16(val);
val += delta;
val = __builtin_bswap16(val);
}
mangle_Overwrite(run, off, (uint8_t*)&val, varLen, printable);
break;
}
case 4: {
int32_t val;
memcpy(&val, &run->dynfile->data[off], sizeof(val));
if (util_rnd64() & 0x1) {
val += delta;
} else {
/* Foreign endianess */
val = __builtin_bswap32(val);
val += delta;
val = __builtin_bswap32(val);
}
mangle_Overwrite(run, off, (uint8_t*)&val, varLen, printable);
break;
}
case 8: {
int64_t val;
memcpy(&val, &run->dynfile->data[off], sizeof(val));
if (util_rnd64() & 0x1) {
val += delta;
} else {
/* Foreign endianess */
val = __builtin_bswap64(val);
val += delta;
val = __builtin_bswap64(val);
}
mangle_Overwrite(run, off, (uint8_t*)&val, varLen, printable);
break;
}
default: {
LOG_F("Unknown variable length size: %zu", varLen);
}
}
}
mangle_MemSet
取随机位置、随机大小，若为可打印字符用随机生成的可打印字符填充，否则用UINT8_MAX 填充。
static void mangle_MemSet(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t len = mangle_getLen(run->dynfile->size - off);
int val = printable ? (int)util_rndPrintable() : (int)util_rndGet(0, UINT8_MAX);
memset(&run->dynfile->data[off], val, len);
}
mangle_MemSwap
新策略，从文件随机两处取随机大小按这两块长度的最小值进行交换。
static void mangle_MemSwap(run_t* run, bool printable HF_ATTR_UNUSED) {
size_t off1 = mangle_getOffSet(run);
size_t maxlen1 = run->dynfile->size - off1;
size_t off2 = mangle_getOffSet(run);
size_t maxlen2 = run->dynfile->size - off2;
size_t len = mangle_getLen(HF_MIN(maxlen1, maxlen2));
uint8_t* tmpbuf = (uint8_t*)util_Malloc(len);
defer {
free(tmpbuf);
};
memcpy(tmpbuf, &run->dynfile->data[off1], len);
memmove(&run->dynfile->data[off1], &run->dynfile->data[off2], len);
memcpy(&run->dynfile->data[off2], tmpbuf, len);
}
mangle_MemCopy
新策略，随机位置取随机大小内容插入/覆盖随机位置。
static void mangle_MemCopy(run_t* run, bool printable HF_ATTR_UNUSED) {
size_t off = mangle_getOffSet(run);
size_t len = mangle_getLen(run->dynfile->size - off);
/* Use a temp buf, as Insert/Inflate can change source bytes */
uint8_t* tmpbuf = (uint8_t*)util_Malloc(len);
defer {
free(tmpbuf);
};
memcpy(tmpbuf, &run->dynfile->data[off], len);
mangle_UseValue(run, tmpbuf, len, printable);
}
static inline void mangle_UseValue(run_t* run, const uint8_t* val, size_t len, bool printable) {
if (util_rnd64() % 2) {
mangle_Insert(run, mangle_getOffSetPlus1(run), val, len, printable);
} else {
mangle_Overwrite(run, mangle_getOffSet(run), val, len, printable);
}
}
mangle_Bytes
随机位置插入/覆盖1~2字节数据。
static void mangle_Bytes(run_t* run, bool printable) {
uint16_t buf;
if (printable) {
util_rndBufPrintable((uint8_t*)&buf, sizeof(buf));
} else {
buf = util_rnd64();
}
/* Overwrite with random 1-2-byte values */
size_t toCopy = util_rndGet(1, 2);
mangle_UseValue(run, (const uint8_t*)&buf, toCopy, printable);
}
mangle_ASCIINum
随机位置插入/覆盖 2~8 字节数据。
static void mangle_ASCIINum(run_t* run, bool printable) {
size_t len = util_rndGet(2, 8);
char buf[20];
snprintf(buf, sizeof(buf), "%-19" PRId64, (int64_t)util_rnd64());
mangle_UseValue(run, (const uint8_t*)buf, len, printable);
}
mangle_ASCIINumChange
新策略，从随机位置起寻找数字，若未找到则执行mangle_Bytes操作，找到则随机对该数字进行加/减/乘/除/取反/替换随机数字。
static void mangle_ASCIINumChange(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
/* Find a digit */
for (; off < run->dynfile->size; off++) {
if (isdigit(run->dynfile->data[off])) {
break;
}
}
if (off == run->dynfile->size) {
mangle_Bytes(run, printable);
return;
}
size_t len = HF_MIN(20, run->dynfile->size - off);
char numbuf[21] = {};
strncpy(numbuf, (const char*)&run->dynfile->data[off], len);
uint64_t val = (uint64_t)strtoull(numbuf, NULL, 10);
switch (util_rndGet(0, 5)) {
case 0:
val += util_rndGet(1, 256);
break;
case 1:
val -= util_rndGet(1, 256);
break;
case 2:
val *= util_rndGet(1, 256);
break;
case 3:
val /= util_rndGet(1, 256);
break;
case 4:
val = ~(val);
break;
case 5:
val = util_rnd64();
break;
default:
LOG_F("Invalid choice");
};
len = HF_MIN((size_t)snprintf(numbuf, sizeof(numbuf), "%" PRIu64, val), len);
mangle_Overwrite(run, off, (const uint8_t*)numbuf, len, printable);
}
mangle_ByteRepeatOverwrite
新策略，在随机位置选取随机不大于文件剩余空间大小的长度，覆盖为该随机位置的值。
static void mangle_ByteRepeatOverwrite(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t destOff = off + 1;
size_t maxSz = run->dynfile->size - destOff;
/* No space to repeat */
if (!maxSz) {
mangle_Bytes(run, printable);
return;
}
size_t len = mangle_getLen(maxSz);
memset(&run->dynfile->data[destOff], run->dynfile->data[off], len);
}
mangle_ByteRepeatInsert
新策略，在随机位置选取随机不大于文件剩余空间大小的长度，插入该长度大小buffer并用之前选择的随机位置的值填充。
static void mangle_ByteRepeatInsert(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t destOff = off + 1;
size_t maxSz = run->dynfile->size - destOff;
/* No space to repeat */
if (!maxSz) {
mangle_Bytes(run, printable);
return;
}
size_t len = mangle_getLen(maxSz);
len = mangle_Inflate(run, destOff, len, printable);
memset(&run->dynfile->data[destOff], run->dynfile->data[off], len);
}
mangle_Magic
取各种边界值进行覆写。
static void mangle_Magic(run_t* run, bool printable) {
uint64_t choice = util_rndGet(0, ARRAYSIZE(mangleMagicVals) - 1);
mangle_UseValue(run, mangleMagicVals[choice].val, mangleMagicVals[choice].size, printable);
}
mangle_StaticDict
新策略，随机从读入的字典中（--dict参数）选择一个magic，插入或替换。
static void mangle_StaticDict(run_t* run, bool printable) {
if (run->global->mutate.dictionaryCnt == 0) {
mangle_Bytes(run, printable);
return;
}
uint64_t choice = util_rndGet(0, run->global->mutate.dictionaryCnt - 1);
mangle_UseValue(run, run->global->mutate.dictionary[choice].val,
run->global->mutate.dictionary[choice].len, printable);
}
mangle_ConstFeedbackDict
新策略，从cmpFeedbackMap中随机选取常量值，插入或覆盖随机位置。
static void mangle_ConstFeedbackDict(run_t* run, bool printable) {
size_t len;
const uint8_t* val = mangle_FeedbackDict(run, &len);
if (val == NULL) {
mangle_Bytes(run, printable);
return;
}
mangle_UseValue(run, val, len, printable);
}
static inline const uint8_t* mangle_FeedbackDict(run_t* run, size_t* len) {
if (!run->global->feedback.cmpFeedback) {
return NULL;
}
cmpfeedback_t* cmpf = run->global->feedback.cmpFeedbackMap;
uint32_t cnt = ATOMIC_GET(cmpf->cnt);
if (cnt == 0) {
return NULL;
}
if (cnt > ARRAYSIZE(cmpf->valArr)) {
cnt = ARRAYSIZE(cmpf->valArr);
}
uint32_t choice = util_rndGet(0, cnt - 1);
//从cmpFeedbackMap保存的常量值中随机选取一个
*len = (size_t)ATOMIC_GET(cmpf->valArr[choice].len);
if (*len == 0) {
return NULL;
}
return cmpf->valArr[choice].val;
}
mangle_RandomOverwrite
新策略，随机位置选取随机长度进行覆盖。
static void mangle_RandomOverwrite(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t len = mangle_getLen(run->dynfile->size - off);
if (printable) {
util_rndBufPrintable(&run->dynfile->data[off], len);
} else {
util_rndBuf(&run->dynfile->data[off], len);
}
}
mangle_RandomInsert
新策略，随机位置选取随机长度进行插入。
static void mangle_RandomInsert(run_t* run, bool printable) {
size_t off = mangle_getOffSet(run);
size_t len = mangle_getLen(run->dynfile->size - off);
len = mangle_Inflate(run, off, len, printable);
if (printable) {
util_rndBufPrintable(&run->dynfile->data[off], len);
} else {
util_rndBuf(&run->dynfile->data[off], len);
}
}
mangle_Splice
新策略，从输入文件中截取随机大小，插入/覆盖到原文件。
static void mangle_Splice(run_t* run, bool printable) {
const uint8_t* buf;
size_t sz = input_getRandomInputAsBuf(run, &buf);
if (!sz) {
mangle_Bytes(run, printable);
return;
}
size_t remoteOff = mangle_getLen(sz) - 1;
size_t len = mangle_getLen(sz - remoteOff);
mangle_UseValue(run, &buf[remoteOff], len, printable);
}
总结
可见 honggfuzz 此次新增加的一些变异策略可以对 fuzz 过程中通过 magic number 和一些判断校验起到积极的作用。对于fuzzbench的测试结果[1] [7] 笔者认为，首先 fuzzbench 项目目前正在完善，两次测试中间会对一些fuzzer的参数进行调整，就会出现两次测试间同一fuzzer对同一benchmark 测试效果截然不同，比如3月11日的测试[7] aflplusplus 一类的fuzzer是默认开启 laf 和 instrim 而 4月21日的测试[1] 则是将这两个参数移除了；其次，fuzzbench 只是收集运行24小时内的覆盖率信息作为评估标准，虽然 fuzzbench 也在讨论新的评估方式 [8] ,笔者认为评估维度还是不够丰富。因此 fuzzbench 目前的结果还是仅供参考，与afl、afl++ 众多扩展相比 honggfuzz 还有很多亟待提升的空间。
参考
[1] https://www.fuzzbench.com/reports/2020-04-21/index.html
[2] https://googleprojectzero.blogspot.com/2020/04/fuzzing-imageio.html
[3] https://twitter.com/0xAcid/status/1237405604123115521
[4] https://github.com/google/honggfuzz
[5] https://riusksk.me/2018/10/14/honggfuzz5/
[6] https://www.anquanke.com/post/id/181936
[7] https://www.fuzzbench.com/reports/2020-03-11/index.html
[8] https://github.com/google/fuzzbench/issues/327
