如何挖掘RPC漏洞(Part 2)



一、前言

在之前的一篇文章中(译文),FortiGuard实验室与大家分享了如何使用RPCView来寻找RPC服务器中的逻辑漏洞,最终我们在Microsoft Universal Telemetry服务中发现了一个潜在问题。

大家可能还记得,在上篇文章中我们讨论了如何通过RPCView寻找输入参数为字符串的RPC API。然而,使用RPCView时有一些限制条件,比如RPCView不会显示Windows没有在默认情况下自动启动的RPC服务(如Data Sharing Service)。之前我们无法识别这个服务,现在我们可以使用另一种方法来识别该服务(下文会介绍)。经过分析后我们发现,这个服务同样存在一些权限提升问题,而使用我们增强版的方法可以发现这些问题。

Google安全研究员James Forshaw最终反馈了4个安全漏洞,MSRC已于去年12月份修复这些漏洞。此外,虽然RPCView非常有用,但使用起来也比较耗时,我们需要逐项审核接收字符串参数的所有API。因此,我们希望能找到节省时间的其他办法。

我们首先分析了之前发现的一些bug,这些bug非常相似,都有一个共同点:这些服务都会调用SetNamedSecurityInfo这个Windows API,该API允许应用程序通过对象名称,在指定对象的安全描述符中设置指定的安全信息。例如,如果操作目标为文件对象,那么应用程序就可以指定文件名。

这里我们想强调一点,这个Windows API并没有存在任何安全问题,然而当我们使用自己开发的静态分析工具来搜索RPC服务时,可以将该API当成过滤器来使用。了解到这一点后,我们创建了一个简单工具,可以静态解析所有的RPC服务程序,寻找感兴趣的Windows API,进一步缩小需要深入研究的RPC服务范围。

经过分析后,我们发现了一些比较有趣的RPC服务。比如Storage Service(也称为StorSvc),该服务中存在之前尚未发现的多个权限提升问题;还有AppX Deployment Server,该服务可能存在竞争条件问题,最终导致权限提升。FortiGuard实验室随后向微软安全响应中心(MSRC)反馈了这些漏洞,微软及时修复了这些漏洞,对应的编号为CVE-2019-0569以及CVE-2019-0766

接下来我们将与大家分享我们发现这些漏洞的具体过程。

[+] Target: appidsvc.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: appidsvc.dll
[+] Target: AppVEntSubsystemController.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: AppVEntSubsystemController.dll
[+] Target: AppXDeploymentServer.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: AppXDeploymentServer.dll
       [*] Potential DLL with arbitrary deletion: AppXDeploymentServer.dll
       [*] Potential executable with arbitrary file modification with move: AppXDeploymentServer.dll
       [*] Potential DLL with arbitrary DACL modification: AppXDeploymentServer.dll
[+] Target: bdesvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: bdesvc.dll
[+] Target: bisrv.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: bisrv.dll
[+] Target: combase.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: combase.dll
       [*] Potential executable arbitrary deletion: combase.dll
[+] Target: cryptcatsvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: cryptcatsvc.dll
       [*] Potential executable with arbitrary file modification with move: cryptcatsvc.dll
[+] Target: cryptsvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: cryptsvc.dll
[+] Target: dhcpcore.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: dhcpcore.dll
[+] Target: dhcpcore6.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: dhcpcore6.dll
[+] Target: DiagSvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: DiagSvc.dll
[+] Target: diagtrack.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: diagtrack.dll
       [*] Potential executable arbitrary deletion: diagtrack.dll
       [*] Potential executable with arbitrary file modification with move: diagtrack.dll
       [*] Potential DLL with arbitrary DACL modification: diagtrack.dll
[+] Target: DmApiSetExtImplDesktop.dll
       [*] Is RPC server file
[+] Target: dot3svc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: dot3svc.dll
[+] Target: dpapisrv.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: dpapisrv.dll
[+] Target: dssvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: dssvc.dll
       [*] Potential DLL with arbitrary deletion: dssvc.dll
       [*] Potential executable with arbitrary file modification with move: dssvc.dll
       [*] Potential DLL with arbitrary DACL modification: dssvc.dll
[+] Target: dusmsvc.dll
       [*] Is RPC server file
[+] Target: edgehtml.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: edgehtml.dll
       [*] Potential DLL with arbitrary deletion: edgehtml.dll
       [*] Potential executable with arbitrary file modification with move: edgehtml.dll
       [*] Potential DLL with arbitrary DACL modification: edgehtml.dll
[+] Target: eeprov.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: eeprov.dll
[+] Target: efslsaext.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: efslsaext.dll
       [*] Potential executable arbitrary deletion: efslsaext.dll
[+] Target: FXSAPI.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: FXSAPI.dll
[+] Target: FXSSVC.exe
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: FXSSVC.exe
       [*] Potential DLL with arbitrary deletion: FXSSVC.exe
       [*] Potential executable with arbitrary file modification with move: FXSSVC.exe
[+] Target: iphlpsvc.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: iphlpsvc.dll
[+] Target: LogonController.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: LogonController.dll
[+] Target: lsasrv.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: lsasrv.dll
       [*] Potential executable with arbitrary file modification with move: lsasrv.dll
[+] Target: mispace.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: mispace.dll
       [*] Potential executable arbitrary deletion: mispace.dll
[+] Target: modernexecserver.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: modernexecserver.dll
[+] Target: msdtcprx.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: msdtcprx.dll
       [*] Potential executable with arbitrary file modification with move: msdtcprx.dll
       [*] Potential DLL with arbitrary DACL modification: msdtcprx.dll
       [*] Potential executable with arbitrary file modification with move: msdtcprx.dll
[+] Target: netlogon.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: netlogon.dll
       [*] Potential executable with arbitrary file modification with move: netlogon.dll
[+] Target: p2psvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: p2psvc.dll
[+] Target: PackageStateRoaming.dll
       [*] Is RPC server file
[+] Target: pcasvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: pcasvc.dll
       [*] Potential executable with arbitrary file modification with move: pcasvc.dll
[+] Target: PeerDistSvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: PeerDistSvc.dll
       [*] Potential DLL with arbitrary deletion: PeerDistSvc.dll
       [*] Potential executable with arbitrary file modification with move: PeerDistSvc.dll
[+] Target: PhoneProviders.dll
       [*] Is RPC server file
[+] Target: pla.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: pla.dll
       [*] Potential executable arbitrary deletion: pla.dll
       [*] Potential DLL with arbitrary deletion: pla.dll
[+] Target: pnrpsvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: pnrpsvc.dll
[+] Target: profsvc.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: profsvc.dll
       [*] Potential executable arbitrary deletion: profsvc.dll
       [*] Potential DLL with arbitrary DACL modification: profsvc.dll
[+] Target: rasmans.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: rasmans.dll
       [*] Potential executable with arbitrary file modification with move: rasmans.dll
       [*] Potential DLL with arbitrary DACL modification: rasmans.dll
[+] Target: rdpclip.exe
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: rdpclip.exe
[+] Target: scesrv.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: scesrv.dll
       [*] Potential DLL with arbitrary DACL modification: scesrv.dll
[+] Target: schedsvc.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: schedsvc.dll
       [*] Potential executable arbitrary deletion: schedsvc.dll
       [*] Potential DLL with arbitrary DACL modification: schedsvc.dll
[+] Target: SessEnv.dll
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: SessEnv.dll
       [*] Potential executable arbitrary deletion: SessEnv.dll
       [*] Potential DLL with arbitrary deletion: SessEnv.dll
[+] Target: Spectrum.exe
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: Spectrum.exe
[+] Target: spoolsv.exe
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: spoolsv.exe
       [*] Potential executable arbitrary deletion: spoolsv.exe
[+] Target: sstpsvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: sstpsvc.dll
[+] Target: StorSvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: StorSvc.dll
       [*] Potential DLL with arbitrary deletion: StorSvc.dll
       [*] Potential DLL with arbitrary DACL modification: StorSvc.dll
[+] Target: sysmain.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: sysmain.dll
       [*] Potential executable with arbitrary file modification with move: sysmain.dll
       [*] Potential DLL with arbitrary DACL modification: sysmain.dll
[+] Target: SystemEventsBrokerServer.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: SystemEventsBrokerServer.dll
       [*] Potential executable with arbitrary file modification with move:
[+] Target: tapisrv.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: tapisrv.dll
[+] Target: taskcomp.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: taskcomp.dll
       [*] Potential DLL with arbitrary DACL modification: taskcomp.dll
[+] Target: tellib.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: tellib.dll
       [*] Potential executable arbitrary deletion: tellib.dll
       [*] Potential executable with arbitrary file modification with move: tellib.dll
       [*] Potential DLL with arbitrary DACL modification: tellib.dll
[+] Target: termsrv.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: termsrv.dll
[+] Target: trkwks.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: trkwks.dll
       [*] Potential executable with arbitrary file modification with move: trkwks.dll
[+] Target: tttracer.exe
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: tttracer.exe
       [*] Potential DLL with arbitrary DACL modification: tttracer.exe
[+] Target: uireng.dll
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: uireng.dll
       [*] Potential DLL with arbitrary deletion: uireng.dll
       [*] Potential executable arbitrary deletion: uireng.dll
[+] Target: usermgr.dll
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: usermgr.dll
       [*] Potential DLL with arbitrary DACL modification: usermgr.dll
[+] Target: vaultsvc.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: vaultsvc.dll
       [*] Potential executable arbitrary deletion: vaultsvc.dll
       [*] Potential executable with arbitrary file modification with move: vaultsvc.dll
[+] Target: vmrdvcore.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: vmrdvcore.dll
       [*] Potential executable arbitrary deletion: vmrdvcore.dll
       [*] Potential executable with arbitrary file modification with move: vmrdvcore.dll
[+] Target: w32time.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary DACL modification: w32time.dll
[+] Target: wevtsvc.dll
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: wevtsvc.dll
       [*] Potential executable arbitrary deletion: wevtsvc.dll
       [*] Potential DLL with arbitrary DACL modification: wevtsvc.dll
[+] Target: wiaservc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wiaservc.dll
[+] Target: wifinetworkmanager.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wifinetworkmanager.dll
       [*] Potential DLL with arbitrary deletion: wifinetworkmanager.dll
[+] Target: wimserv.exe
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wimserv.exe
       [*] Potential DLL with arbitrary deletion: wimserv.exe
[+] Target: Windows.Internal.Bluetooth.dll
       [*] Is RPC server file
[+] Target: wininit.exe
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wininit.exe
       [*] Potential executable with arbitrary file modification with move: wininit.exe
[+] Target: winlogon.exe
       [*] Is RPC server file
       [*] Potential executable with arbitrary file modification with move: winlogon.exe
[+] Target: wlansvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wlansvc.dll
       [*] Potential executable with arbitrary file modification with move: wlansvc.dll
[+] Target: wwansvc.dll
       [*] Is RPC server file
       [*] Potential executable arbitrary deletion: wwansvc.dll
       [*] Potential executable with arbitrary file modification with move: wwansvc.dll
[+] Target: XblGameSave.dll
       [*] Is RPC server file
       [*] Potential DLL with arbitrary deletion: XblGameSave.dll
       [*] Potential executable arbitrary deletion: XblGameSave.dll
       [*] Potential executable with arbitrary file modification with move: XblGameSave.dll

清单1. 静态解析器过滤出的RPC可执行文件



二、Microsoft Windows Storage Service任意文件覆盖漏洞:CVE-2019-0569

分析解析器的输出结果时(参考清单1),我们发现StorSvc.dll包含我们需要的导入API。逆向分析DLL组件后,我们找到了一个接口:BE7F785E-0E3A-4AB7-91DE-7E46E443BE29。逆向分析该接口对外公开的RPC API时,我们发现SvcSetStorageSettings较为有趣。这个API会创建目录名能够预测的一些Windows目录。当我们将正确的参数传递给该API时,外部驱动器卷的根目录中将创建如下文件夹:

Documents
Videos
Pictures
Downloads
Music

大家可能已经注意到,这些目录名与用户根目录(即%USERPROFILE%)下的默认目录名相同。然而问题是,只有当外部硬盘驱动器卷存在时,这个RPC API才会创建这些目录。当RPC API被触发时,我们可以看到与下图类似的Process Monitor输出结果:

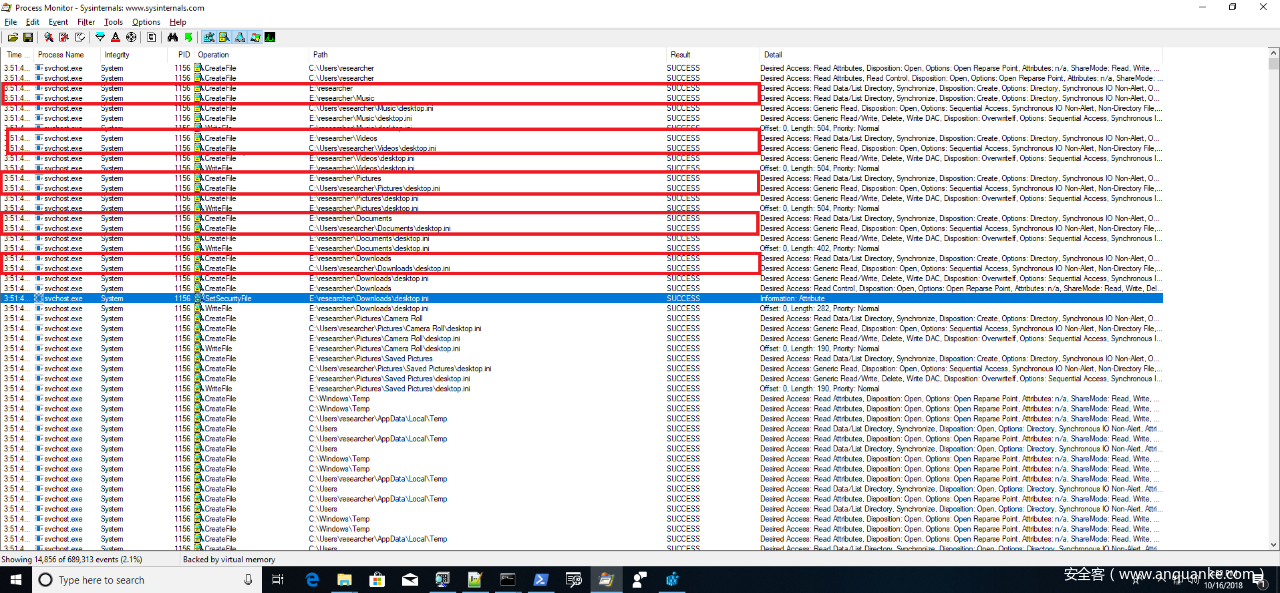

图1. SvcSetStorageSettings创建文件名已知的多个目录

根据Process Monitor的输出结果,因为这个RPC API会创建能够预测的一些目录,因此容易受到符号链接攻击影响。根据Process Monitor的调用栈信息,我们可以精确定位特定CreateFile事件中涉及到的相关函数。当分析这些函数时,我们很快就发现StorageService::CreateStorageCardDirectory中存在问题,该函数在创建认证用户所能访问的文件和目录时缺少模拟(impersonation)机制,允许攻击者通过符号链接(symlink)修改任意文件对象的ACL。

我们来分析如下代码片段:

StorageService::CreateStorageCardDirectory()
{
       dwFileAttributes = GetFileAttributesW(&FileName);
       if ( dwFileAttributes != -1 && !(dwFileAttributes & FILE_ATTRIBUTE_DIRECTORY) ) // -- (1)
       {
               DeleteFileW(&FileName);
               dwFileAttributes = -1;
       }

       if (CreateDirectoryW(&FileName, lpSecurityAttributes) )     // -- (2)
       {
               if (dwFileAttributes != -1 && (ExistingFileAttributes | 0x10) != (dwFileAttributes & 0xFFFFFFDF) )
                      SetFileAttributesW(&FileName, ExistingFileAttributes | 0x10)
       }
       else if (GetLastError() == ERROR_ALREADY_EXISTS)
       {
result = SetNamedSecurityInfoW(&FileName, SE_FILE_OBJECT, SECURITY_DACL_INFORMATION, 0, 0, NewAcl, 0);                                                        // -- (3)
               boolSetNameddSecInfo = result < 0;
               if ( result > 0 )
               {
                      result = (unsigned __int16)result | 0x80070000;
                      boolSetNameddSecInfo = result < 0;
               }
               if (!boolSetNameddSecInfo)
               {
                      dwFileAttributes = GetFileAttributesW(&FileName);
                      SetFileAttributesW(&FileName, ExistingFileAttributes | 0x10)
               }
       }
}

清单2. StorageService::CreateStorageCardDirectory中缺乏模拟机制

如果攻击者成功创建了一个符号链接,将FileName重定向到攻击者所需的文件对象,那么就可以在上述代码标签(3)处使用NewAcl来修改被重定向文件对象的ACL(NewAcl为当前登录用户的ACL)。

在发起符号链接攻击之前,我们需要满足代码中标签(2)和标签(3)的检查条件。简而言之,如果出现文件名冲突,那么这几行代码就会删除文件,尝试创建名称相同的目录。需要注意的是,在创建目录之前,代码首先会执行DeleteFileW,删除指向目标文件的符号链接。那么我们如何避免符号链接被删除呢?

事实证明,如果调用方进程以独占方式打开了FileName对应的文件句柄,那么就可以轻松绕过这个限制。这样操作后,即使DeleteFileW调用失败、返回拒绝访问错误,整个代码也会继续执行,因为代码并没有检查API调用返回时是否存在错误。

设置指向目标文件的符号链接并创建该文件的独占句柄后,我们可以触发SvcSetStorageSettings修改任意文件对象的ACL。如下图所示,我们使用SvcSetStorageSettings中的漏洞来修改Windows目录中文件的ACL,而正常情况下非特权用户无法修改该文件的ACL。

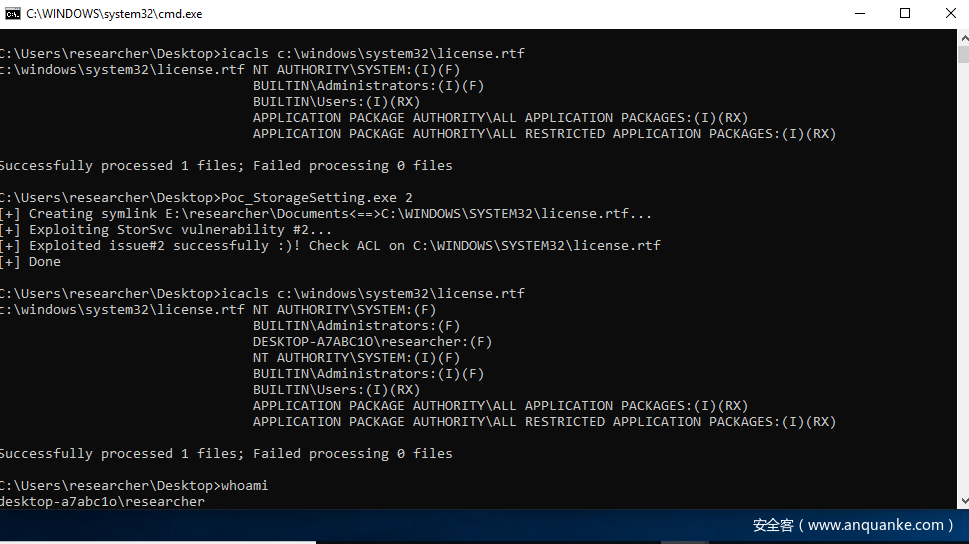

图2. 利用SvcSetStorageSettings RPC API漏洞



三、Microsoft AppX Deployment Server任意文件创建漏洞:CVE-2019-0766

继续研究解析器的输出结果,我们找到了存在同样符号攻击漏洞的另一个服务:Windows AppX Deployment Service,该服务同样缺乏模拟机制。

在安装从Microsoft Store上下载的AppX软件包时,我们发现AppX Deployment Service会将AppX可执行文件及对应的资源存放到如下可预测的文件路径中:

E:\WpSystem\<current_logged_in_user_sid>\AppData\Local\Packages\Microsoft.AppX.Package.Name

因此,如果该服务会修改释放出的文件的ACL,那么我们就可以采用相同的符号攻击操作(请注意,这里E:驱动器为我们测试系统上的外部驱动器)。大家可能会注意到这与前面的场景有些类似,但我们首先需要确定这个文件路径的可访问性。

我们可以使用icacls命令来确定文件和目录的可访问性,结果表明当前登录用户具备该目录的完整访问权限:

C:\>icacls E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local\Packages\Microsoft.MicrosoftMahjong_8wekyb3d8bbwe
E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local\Packages\Microsoft.MicrosoftMahjong_8wekyb3d8bbwe
NT AUTHORITY\SYSTEM:(CR)(F)
NT AUTHORITY\SYSTEM:(OI)(CI)(IO)(CR)(F)
DESKTOP-A7ABC1O\researcher:(CR)(F)
DESKTOP-A7ABC1O\researcher:(OI)(CI)(IO)(CR)(F)
BUILTIN\Administrators:(CR)(F)
BUILTIN\Administrators:(OI)(CI)(IO)(CR)(F)
NT AUTHORITY\SYSTEM:(I)(OI)(CI)(F)
BUILTIN\Administrators:(I)(OI)(CI)(F)
DESKTOP-A7ABC1O\researcher:(I)(OI)(CI)(F)

C:\>icacls E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local\Packages
E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local\Packages
NT AUTHORITY\SYSTEM:(I)(OI)(CI)(F)
BUILTIN\Administrators:(I)(OI)(CI)(F)
DESKTOP-A7ABC1O\researcher:(I)(OI)(CI)(F)

C:\>icacls E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local
E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData\Local
NT AUTHORITY\SYSTEM:(I)(OI)(CI)(F)
BUILTIN\Administrators:(I)(OI)(CI)(F)
DESKTOP-A7ABC1O\researcher:(I)(OI)(CI)(F)

C:\>icacls E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData
E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001\AppData
NT AUTHORITY\SYSTEM:(I)(OI)(CI)(F)
BUILTIN\Administrators:(I)(OI)(CI)(F)
DESKTOP-A7ABC1O\researcher:(I)(OI)(CI)(F)

C:\>icacls E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001
E:\WpSystem\S-1-5-21-2264505789-2271452246-4192020221-1001
NT AUTHORITY\SYSTEM:(OI)(CI)(F)
BUILTIN\Administrators:(OI)(CI)(F)
DESKTOP-A7ABC1O\researcher:(OI)(CI)(F)

显然,普通用户账户可以修改高权限服务所共享的资源。我们有多种方法来验证该问题的确存在:如前文所示,我们可以使用Process Monitor来捕捉在AppX软件包安装过程中生成的事件,然后查找SetSecurityFile事件来确定具体的代码路径。这里我们换种思路,采用静态分析方法来分析AppXDeploymentServer.dll,这个DLL组件中包含该服务处理逻辑的具体实现。

最终我们找到了如下代码片段,这些代码与目录创建操作有关。

// After created its parent directories, try to create E:\WpSystem\<SID>\AppData\Local\Packages\<AppX.PackageName>
        if ( CreateDirectoryW(*(LPCWSTR *)(this - 28), 0) )           // -- (1)
          v16 = 0;
        else
          v16 = getlasterror();
        v15 = *(void **)(this + 4);
        if ( v16 < 0 )
        {
          v17 = 0x4C8;
          goto exit;
        }
      }
      v15 = *(void **)(this + 4);
      if ( v16 >= 0 )
      {
        if ( v13 == 1
          || sub_102335C9(v15)
            // Set security descriptor on e:\WPSystem and its sub-directories to allow Administrator and System user access only
          || (v19 = wpsystem_setnamedsecurityinfo((int)v12, *(WCHAR **)(this - 16)),
              v15 = *(void **)(this + 4),
              v16 = v19,
              v19 >= 0) )
        {
          // Encrypt and compress the files in Appx.Package
          v20 = EncryptFile((int)v12, *(WCHAR **)(this - 16));     // -- (2)
          v15 = *(void **)(this + 4);
          v16 = v20;
          if ( v20 >= 0 )
          {
            // Reset security descriptor on \\?\E:\WpSystem\<SID>\AppData\Local\Packages\<AppX.PackageName> to allow full access
           // however, neither no verification is done on the assigned object name therefore it can be replaced with file object instead of directory object and impersonation here
            v21 = SetNamedSecurityInfoW(*(LPWSTR *)(this - 28), SE_FILE_OBJECT, DACL_SECURITY_INFORMATION, 0, 0, *(PACL *)(this - 20), 0);            // -- (3)

清单3. AppXDeploymentServer.dll中缺乏用户模拟机制

如上代码所示,标签(1)处会创建AppX软件包目录,标签(3)处会通过SetNamedSecurityInfoW设置安全描述符,这两处可能存在竞争条件,如果竞争成功,攻击者就可以修改任意文件对象的ACL。

为了验证这一点,我们的目标是重定向AppX目录名(SetNamedSecurityInfoW的第一个参数,参考标签(3)处),利用符号链接将其重定向至我们选择的任意文件对象。

在执行该操作之前,我们需要将默认保存位置设置为外部驱动器,这一点非常重要。在Windows 10中,我们可以通过“控制面板”的“默认保存位置”来设置该选项,但我们希望通过程序来完成该操作。在前面一个例子中,我们可以使用SvcSetStorageSettings RPC API来直接修改默认保存位置,但在程序中定义RPC接口是非常繁琐的操作,因此我们想要更加简单的实现方法。

事实上,大多数RPC API都是封装在一个DLL组件中,通过DLL导出函数对外提供服务。由于微软并没有公开文档描述已封装的RPC API导出函数,并且这些API大多数由Windows系统组件来实现,因此为了寻找这个DLL,我们需要在%WINDIR\SYSTEM32目录中搜索对应的RPC UUID。当我们使用对应的UUID(BE7F785E-0E3A-4AB7-91DE-7E46E443BE29)搜索SvcSetStorageSettings接口时,我们找到了StorageUsage.dll,从中找到了一个未公开的API:SetStorageSettings。因此,现在我们可以使用LoadLibrary()GetProcAddress()来动态调用这个API。

最终,我们构造并运行PoC,使用Process Monitor来分析竞争条件,如下图所示:

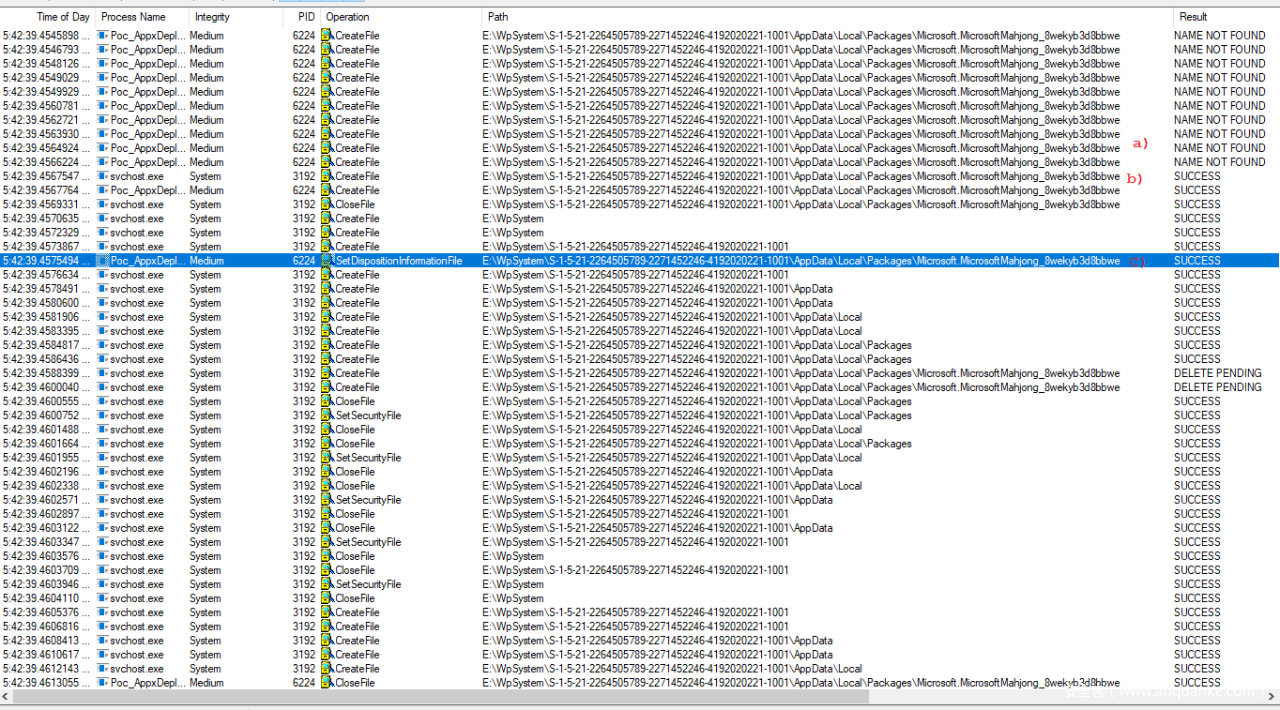

图3. 无限循环线程PoC

a)PoC正在执行无限循环线程操作,尝试删除清单3标签(1)处代码所创建的AppX文件夹

b)AppX Deployment Service成功创建AppX文件夹

c)随后,我们的PoC线程成功删除该文件夹

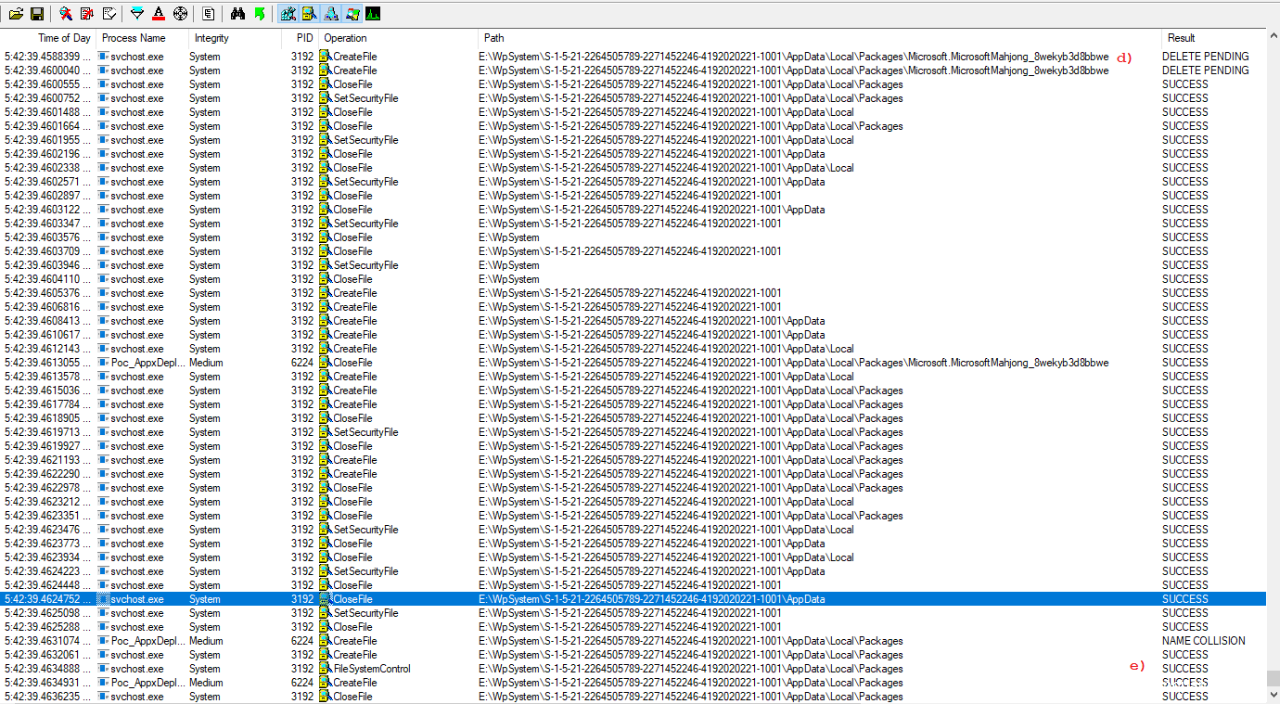

图4. PoC修改ACL

d)此时,AppX Deployment Server尝试调用wpsystem_setnamedsecurityinfo修改目录及子目录的安全描述符。然而,由于a)处准备删除该文件,因此该操作无法执行成功。

e)此时执行清单3标签(2)处代码。

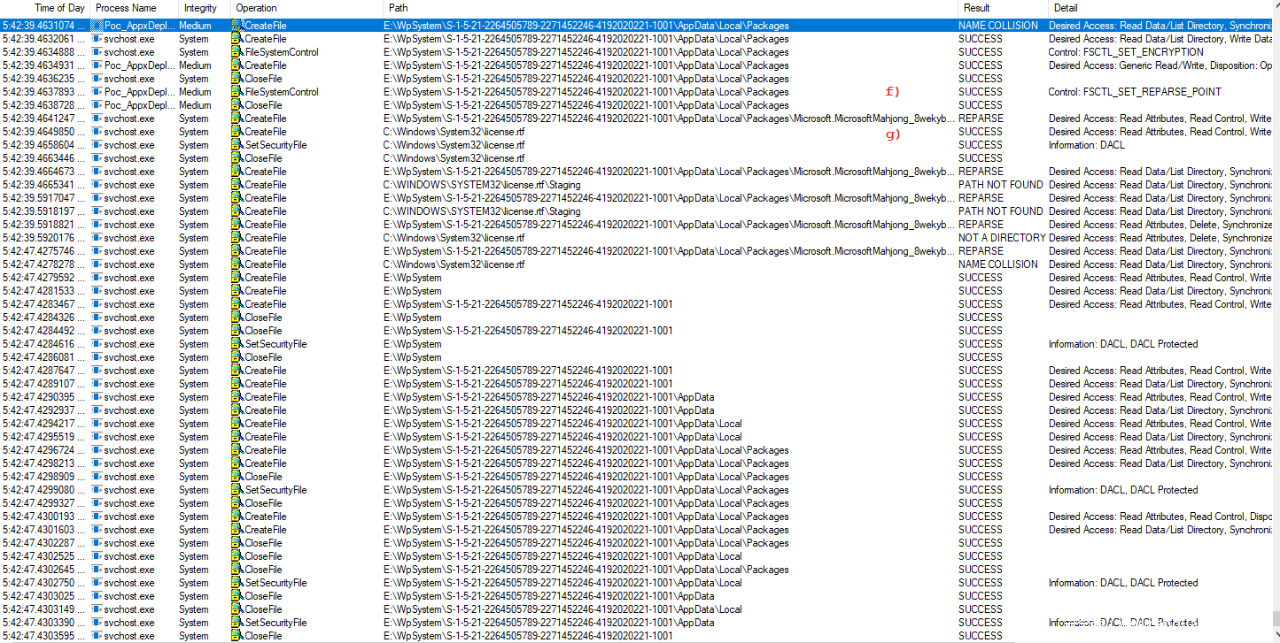

图5. 成功利用竞争条件

成功利用竞争条件后,在清单3标签(3)处代码执行前,我们的PoC就可以创建指向任意文件(这里为C:\Windows\system32\license.rtf)的符号链接。

g)最终,目标文件的安全描述符会被特权服务成功修改。

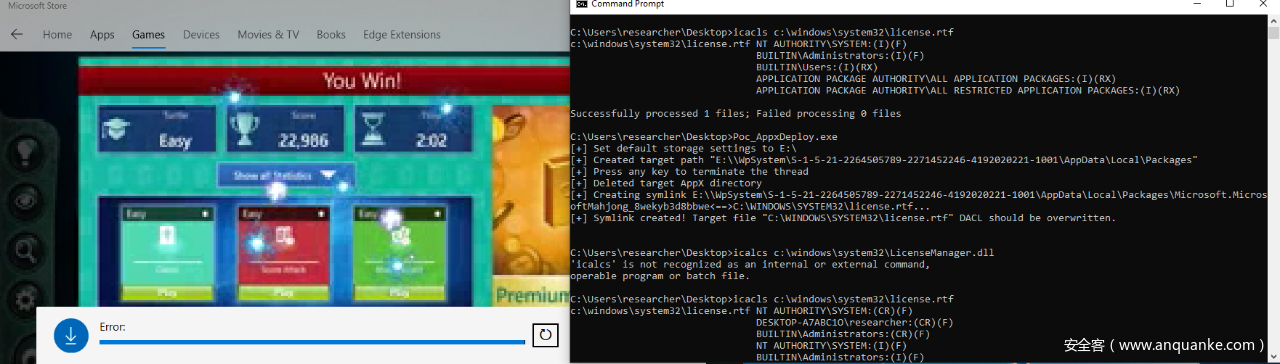

图6. 成功利用竞争条件覆盖任意文件对象



四、总结

在本文中,我们与大家分享了如何进一步缩小待分析的RPC服务范围,寻找是否存在本地提权问题。到目前为止这种方法非常有效,已经帮助我们在多个组件中发现了类似漏洞。

FortiGuard实验室已经发布相应的IPS特征(MS.RPC.AppXSvc.Privilege.Escalation以及MS.RPC.AppXSvc.Privilege.Escalation),能够检测到这类问题,可以帮助我们的客户免受此类问题影响。

(完)
